High-Performance Insert Molding Solutions

Insert Molding dominates electronics, automotive, and energy sectors for hybrid assemblies. Typical applications:

  • Threaded metal fasteners in plastic
  • Sensor-embedded housings
  • Circuit board encapsulation
  • Automotive fluid system hybrids
  • Reinforced electrical contacts
  • Valve component assemblies

Start A New Insert Molding Quote

Start to Upload Your Files
Drag and drop file here or click the button below or
STEP | STP I SLDPRT I IPT I PRT I SAT FLES
All uploads are secure and confidential.

Advanced Manufacturing Capabilities

Integrating Engineering Expertise, Advanced Manufacturing Processes, and Flexible Production Capabilities to Support Product Development from Initial Prototypes to Scalable Production.

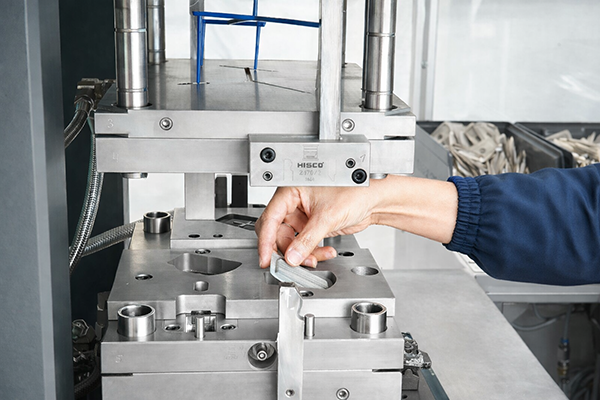

Manual Insert Molding

Requires manual placement of inserts into molds before injection (±0.5mm tolerance). Ideal for low-volume prototypes and complex geometries like surgical tool components.

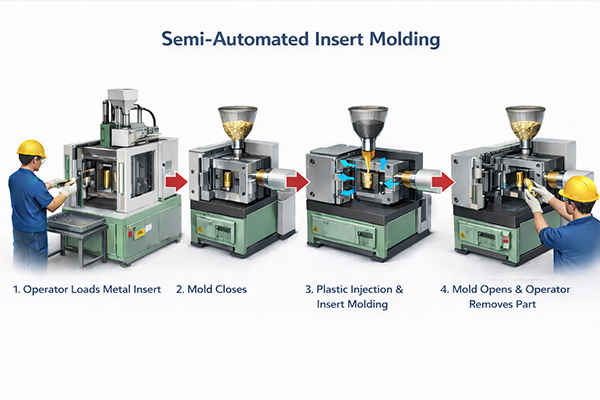

Semi-Automated Insert Molding

Combines manual loading with mechanized molding (±0.3mm tolerance). Cost-effective for mid-volume medical housings requiring ISO cleanliness standards.

Automated Insert Molding

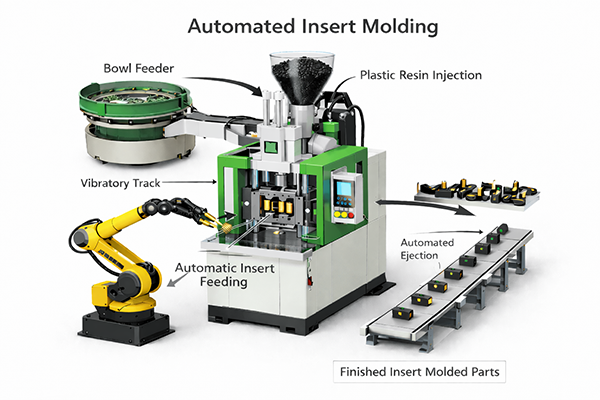

Uses robotics for high-speed insert placement (±0.1mm tolerance). Dominates mass production of automotive fasteners and micro-USB connectors.

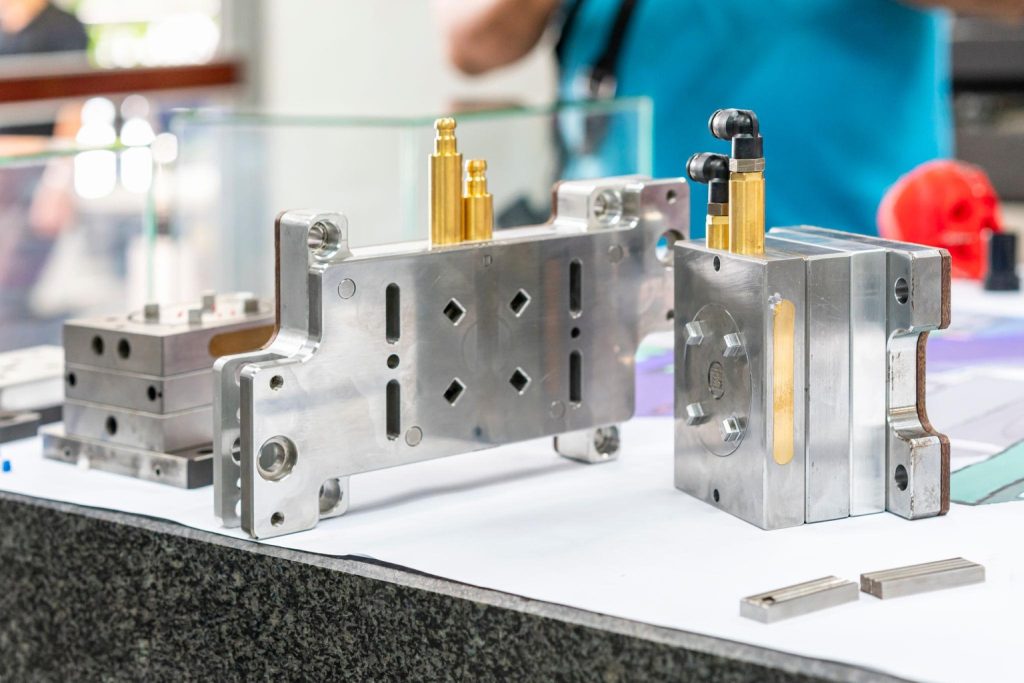

Insert Molding Mass Production

Automates insert placement and injection molding for large-scale manufacturing (±0.1mm tolerance). Ideal for high-volume assemblies requiring strong bonding and consistent part integration.

Our Expert Insert Molding Parts

Precisely encapsulating metal/ceramic inserts (M2 screws, sensors, connectors) with 0.01mm positional tolerance. Automated vision inspection ensures 100% insert alignment verification for electrical and mechatronic assemblies.

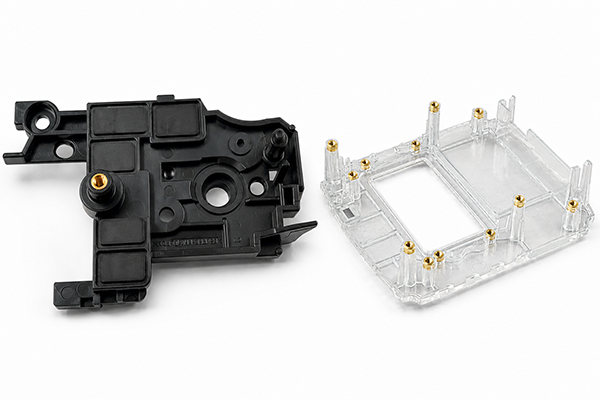

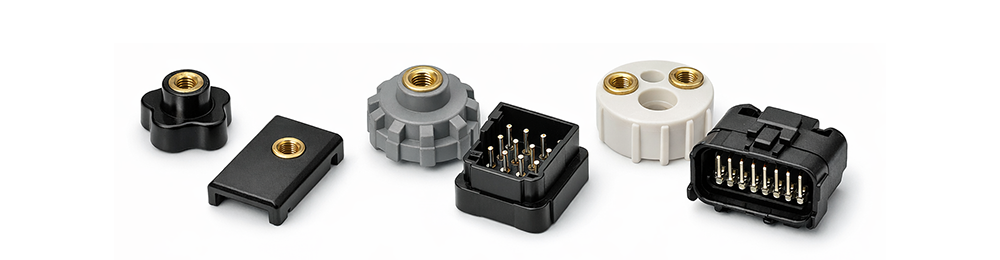

Threaded Insert Parts
  • 10+ Years of Insert Molding Services
  • Tight Tolerance of 0.005mm
  • Instant Quote As fast as 2 Hours
  • 2 working days deliver time at fastest
Get a Quote

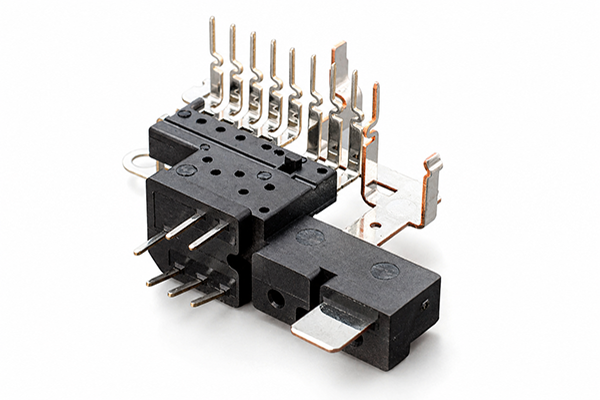

Connector & Electronic Insert Parts
  • 10+ Years of Insert Molding Services
  • Tight Tolerance of 0.005mm
  • Instant Quote As fast as 2 Hours
  • 2 working days deliver time at fastest
Get a Quote

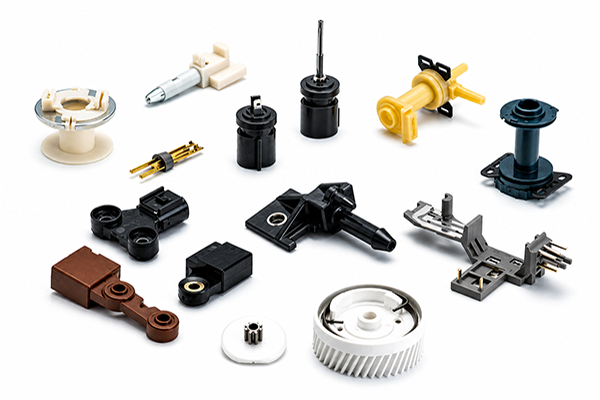

Structural Insert Molded Parts
  • 10+ Years of Insert Molding Services
  • Tight Tolerance of 0.005mm
  • Instant Quote As fast as 2 Hours
  • 2 working days deliver time at fastest
Get a Quote

Insert Molding Materials

Encapsulating brass/steel inserts in high-flow materials (PP, POM) with <0.1mm warpage. Special formulations prevent cracking around metal components in electrical connectors and sensor housings after thermal cycling.

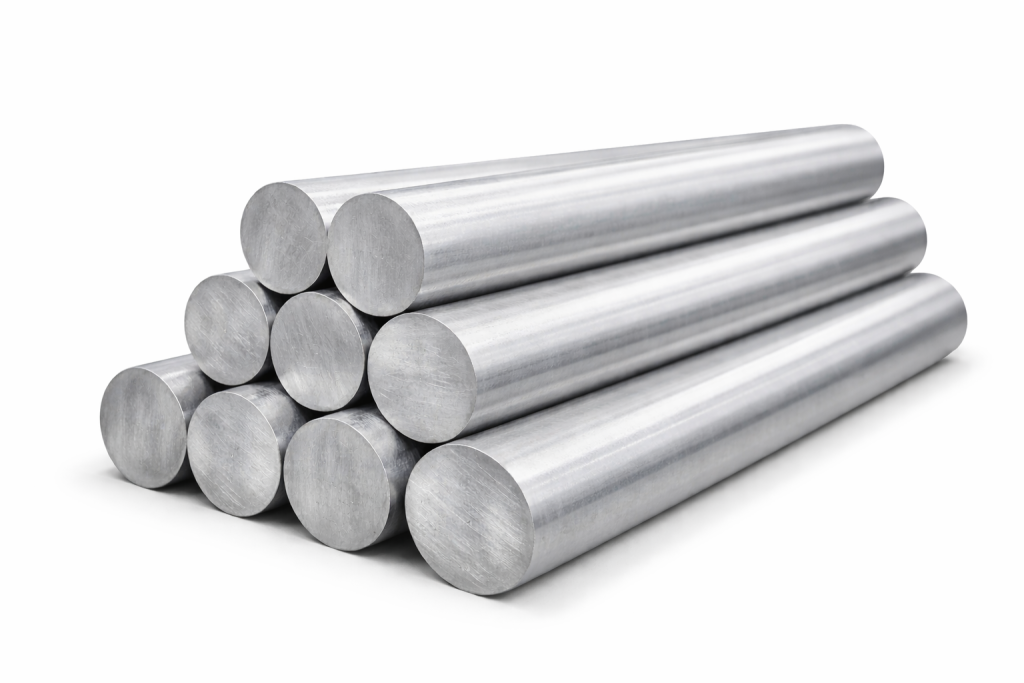

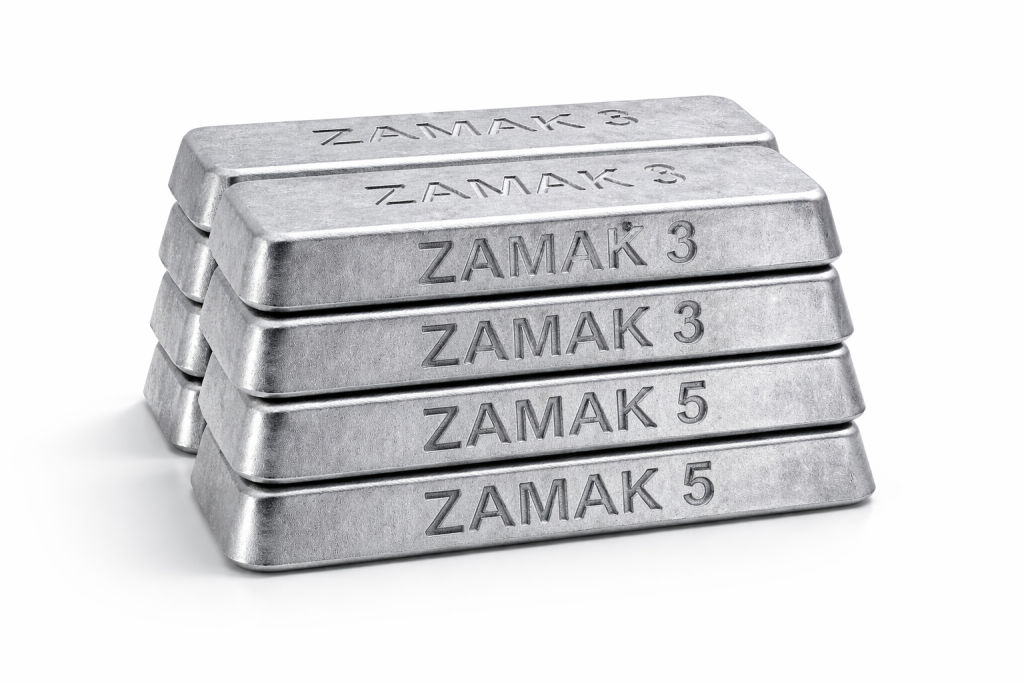

Metals

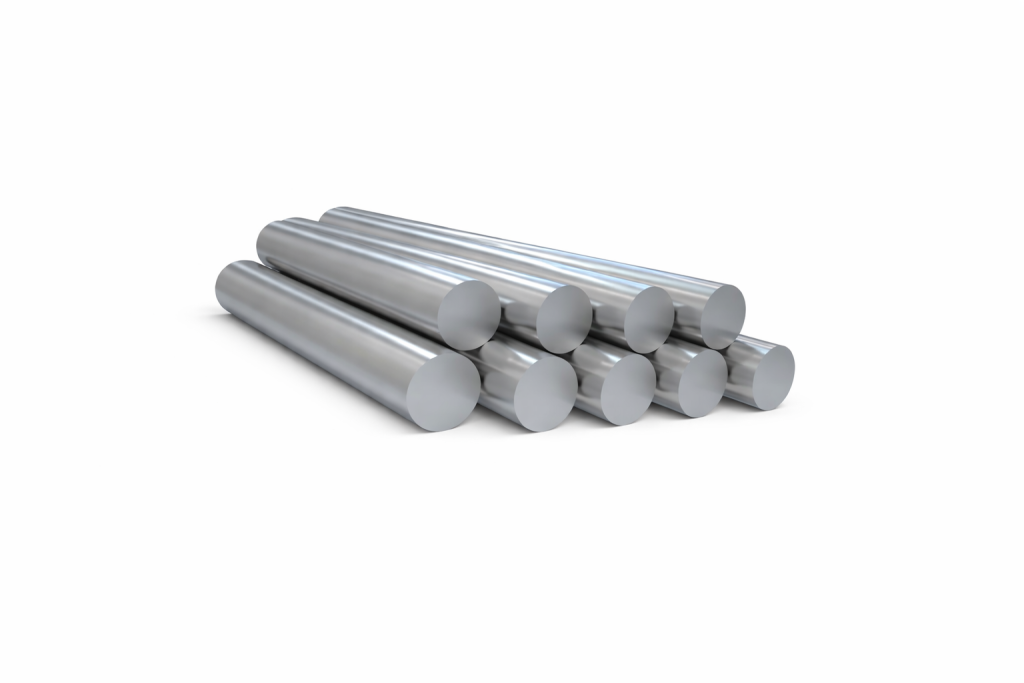

Lightweight, high thermal conductivity, Excellent Machinability, Superior Dimensional Stability, Tight-Tolerance Capable, Perfect for Complex CNC Milling and Turning.
Price: $0
Lead Time: < 5 days
Tolerances: ±0.005″ (±0.125mm)
Max part size: 200 cm x 80 cm x 100 cm

Extremely lightweight (67% aluminum density), good vibration damping, requires surface treatment.
Price: $0
Lead Time: < 10 days
Tolerances: ±0.005″ (±0.125mm)
Max part size: 200 cm x 80 cm x 100 cm

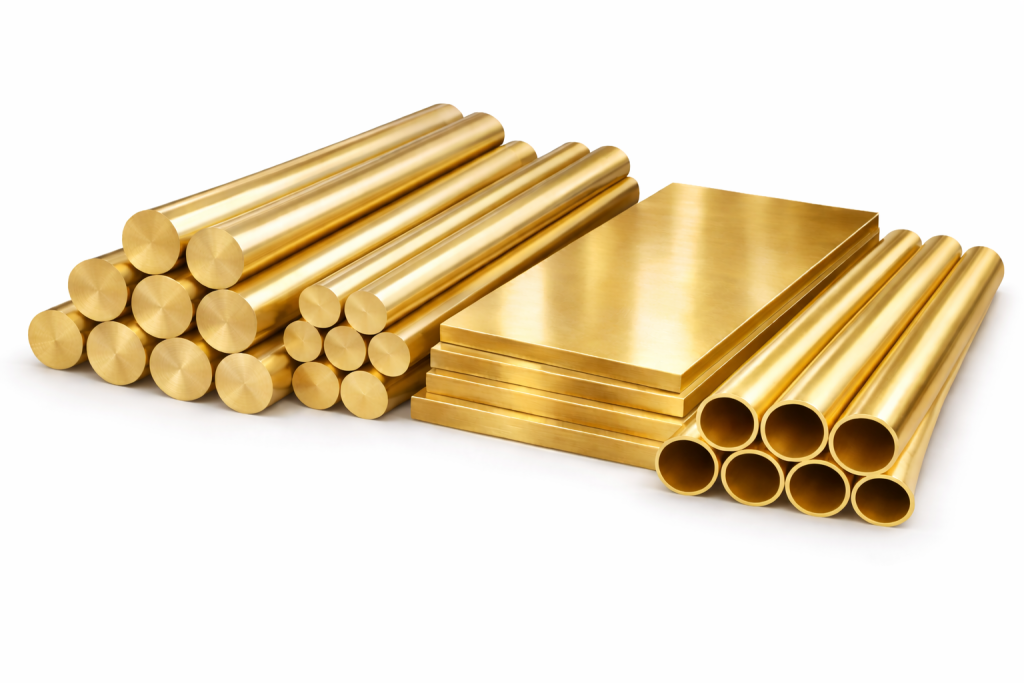

Excellent malleability, corrosion-resistant, decorative finishes, suitable for intricate stamped panels.
Price: $0
Lead Time:
Tolerances:
Max part size:

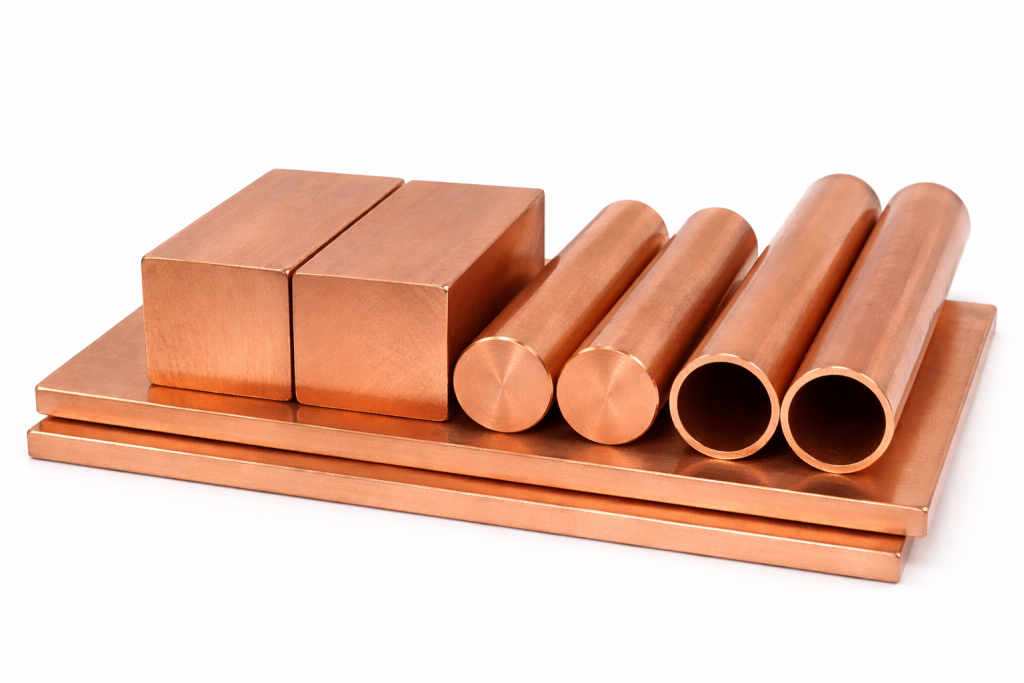

High electrical conductivity, soft yet work-hardening, requires annealing during multi-stage forming.
Price: $0
Lead Time:
Tolerances:
Max part size:

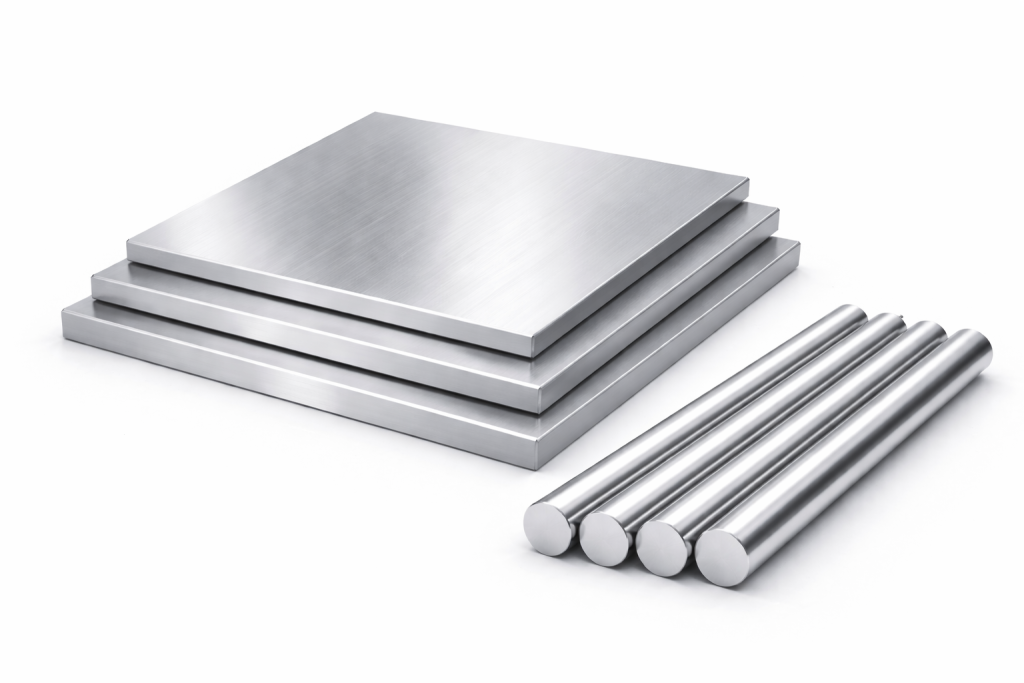

Cost-effective formability, high strength-to-weight ratio, requires anti-rust coating for exposed edges.
Price: $0
Lead Time:
Tolerances:
Max part size:

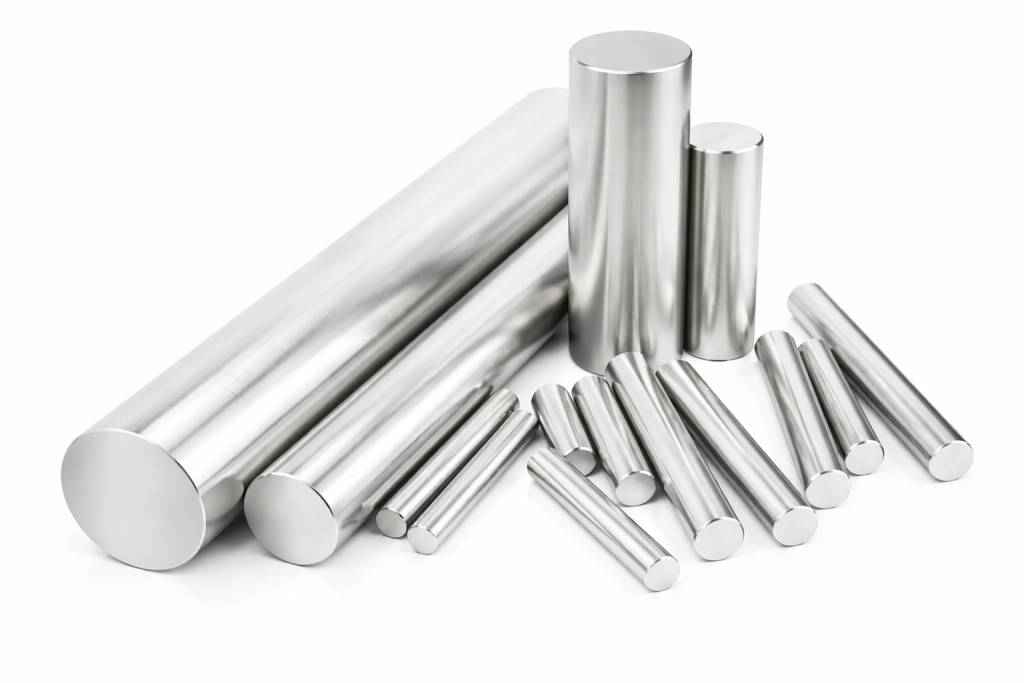

Corrosion-resistant, retains strength after welding, maintains integrity in harsh environments.
Price: $0
Lead Time:
Tolerances:
Max part size:

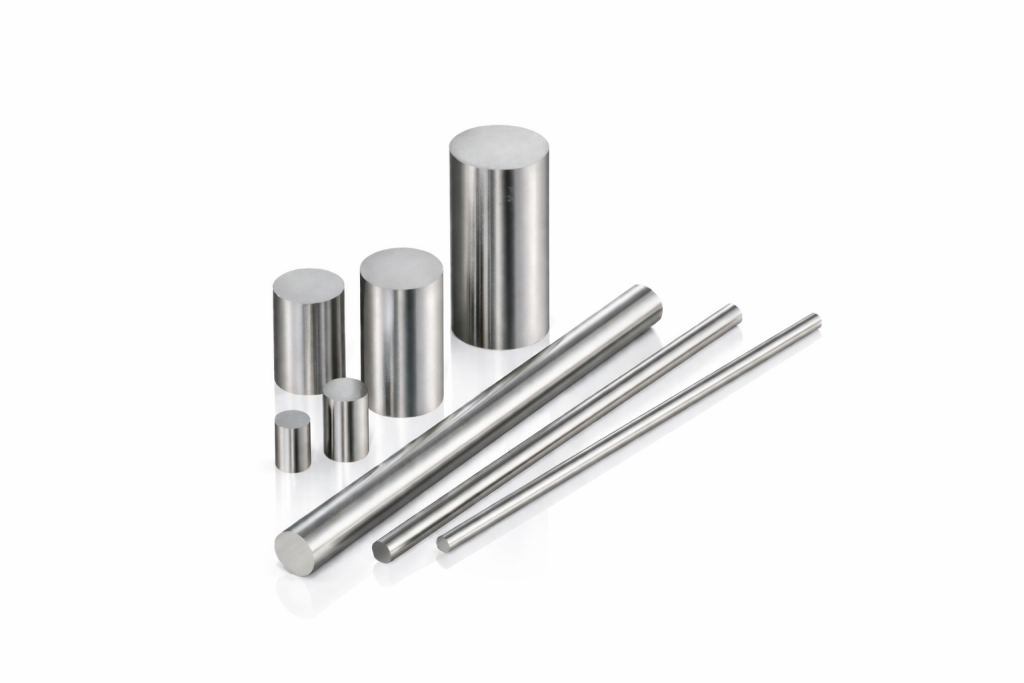

Aerospace-grade strength, biocompatible, seawater corrosion resistance, difficult to machine.
Price: $0
Lead Time: < 10 days
Tolerances: ±0.005″ (±0.125mm)
Max part size: 200 cm x 80 cm x 100 cm

Lightweight, high thermal conductivity, Excellent Machinability, Superior Dimensional Stability, Tight-Tolerance Capable, Perfect for Complex CNC Milling and Turning.
Price: $0
Lead Time: < 5 days
Tolerances: ±0.005″ (±0.125mm)
Max part size: 200 cm x 80 cm x 100 cm

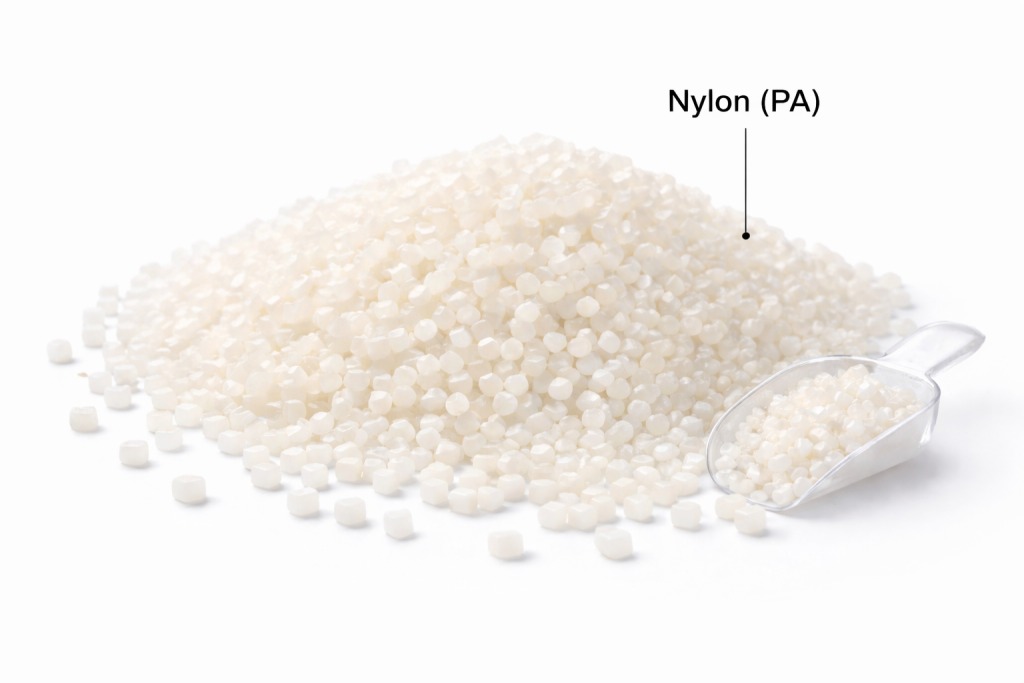

Plastics

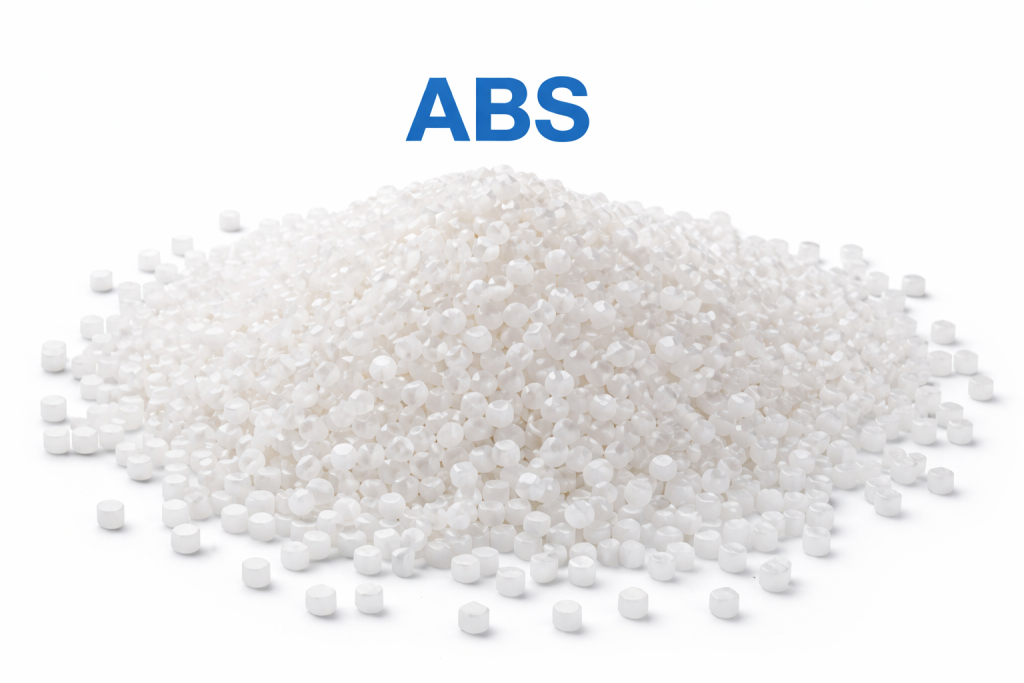

Fast-flowing melt, low shrinkage (0.4-0.7%), requires pre-drying (80°C/4h), ideal for automotive dashboards and consumer electronics housings.
Price: $0
Lead Time:
Tolerances:
Max part size:

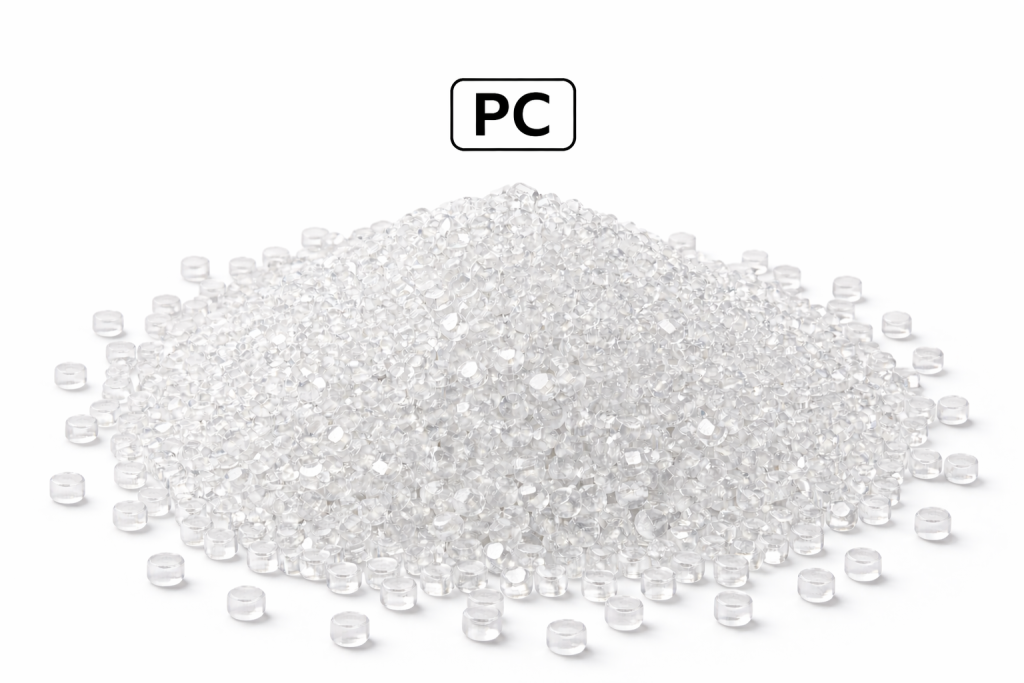

High melt viscosity (300-350°C processing), moisture-sensitive (0.02% max), optical-grade clarity for LED lenses and medical device components.
Price: $0
Lead Time:
Tolerances:
Max part size:

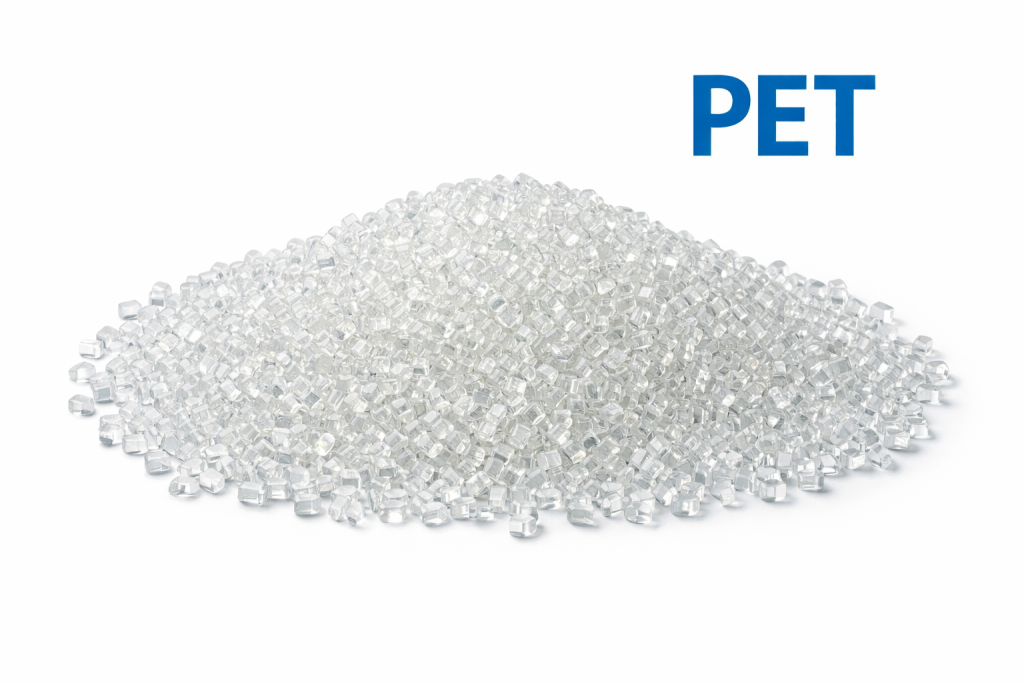

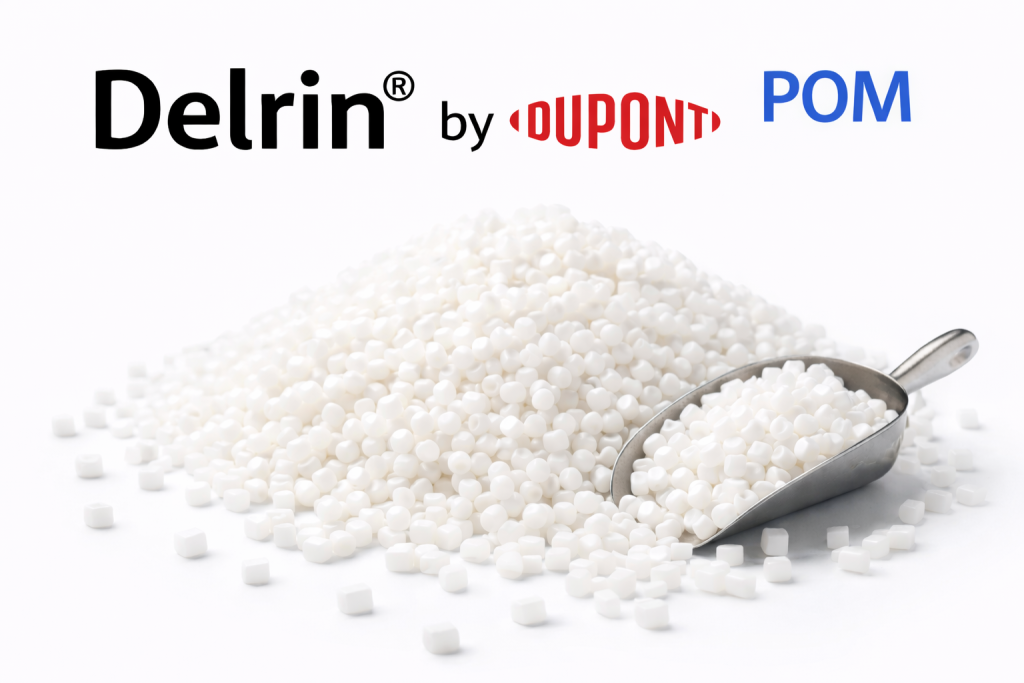

Crystallization-sensitive cooling (80-120°C mold), high dimensional stability, precision gears and fuel system valves.
Price: $0
Lead Time:
Tolerances:
Max part size:

Moisture absorption (2.5-3.5%) requires post-molding annealing, self-lubricating bushings and automotive cable ties.
Price: $0
Lead Time:
Tolerances:
Max part size:

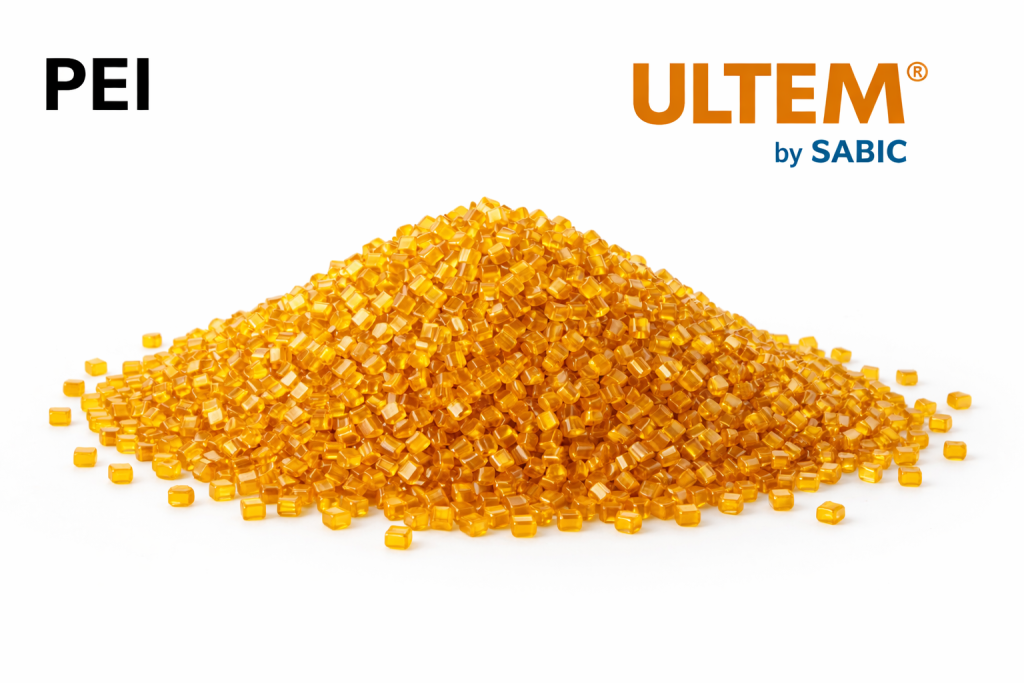

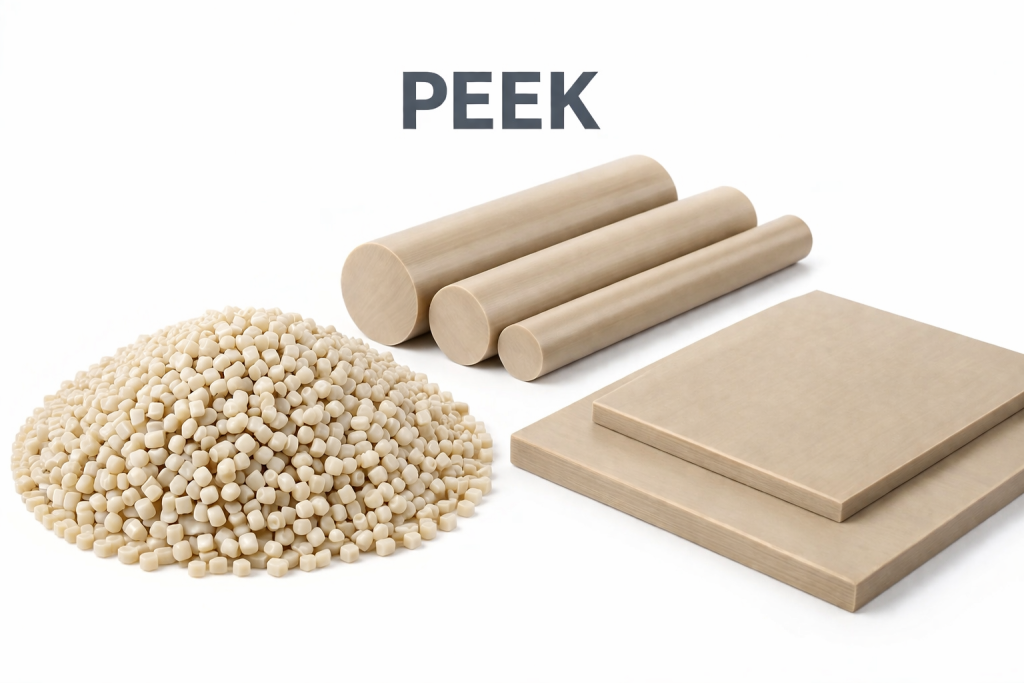

Extreme processing temps (380-400°C), low shrinkage (0.1-0.3%), aerospace bushings and surgical sterilization trays.
Price: $0
Lead Time:
Tolerances:
Max part size:

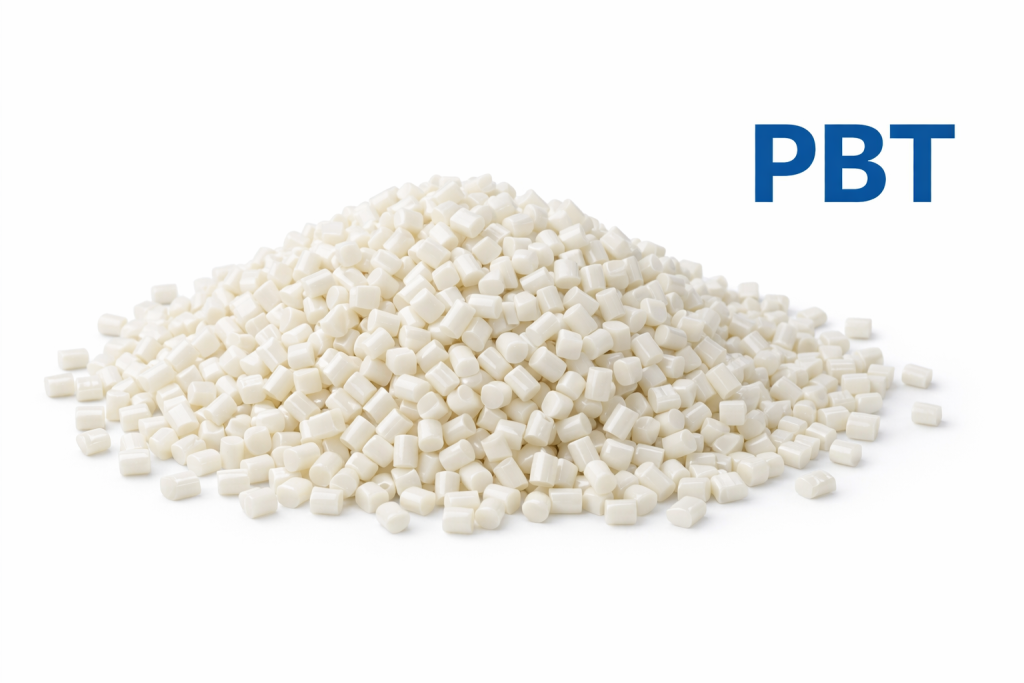

Heat distortion resistance (150°C), electrical insulation, glass-fiber reinforced automotive connectors.
Price: $0
Lead Time:
Tolerances:
Max part size:

Aerospace-grade strength, biocompatible, seawater corrosion resistance, difficult to machine.
Price: $0
Lead Time: < 10 days
Tolerances: ±0.005″ (±0.125mm)
Max part size: 200 cm x 80 cm x 100 cm

Lightweight, high thermal conductivity, Excellent Machinability, Superior Dimensional Stability, Tight-Tolerance Capable, Perfect for Complex CNC Milling and Turning.
Price: $0
Lead Time: < 5 days
Tolerances: ±0.005″ (±0.125mm)
Max part size: 200 cm x 80 cm x 100 cm

Low melt strength (LDPE: 160-240°C), high flow rate for thin-wall containers and chemical-resistant pipeline fittings.
Price: $0
Lead Time:
Tolerances:
Max part size:

Low density (0.9g/cm³), living hinge capability, disposable syringes and automotive HVAC ducts.
Price: $0
Lead Time:
Tolerances:
Max part size:

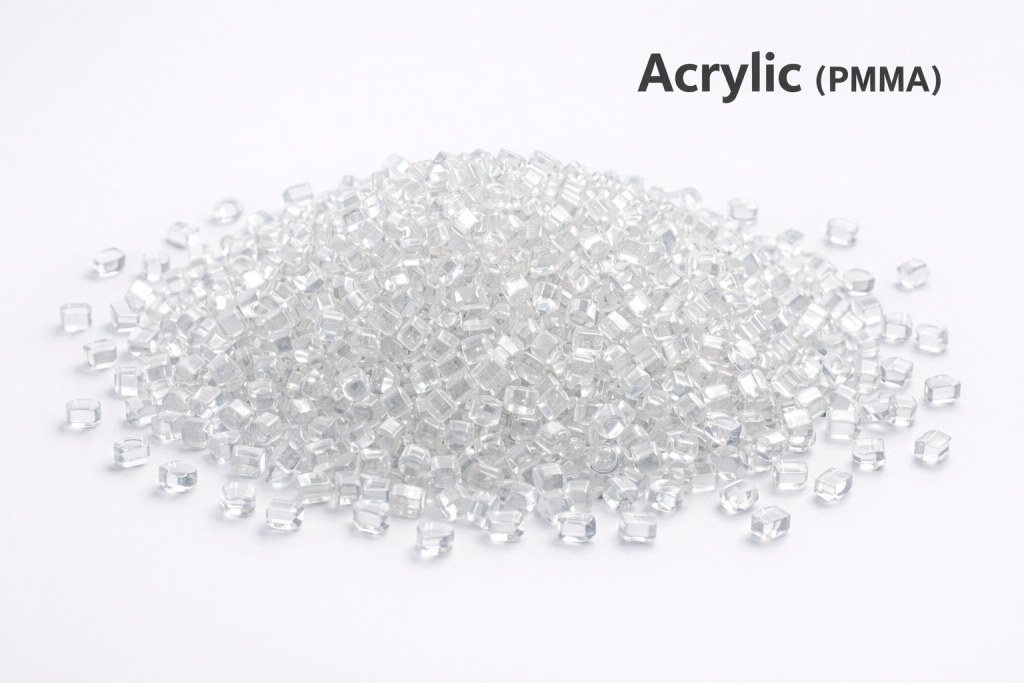

High mold temperature (60-80°C) reduces internal stress, low warpage, replaces glass in automotive taillights and cosmetic packaging.
Price: $0
Lead Time:
Tolerances:
Max part size:

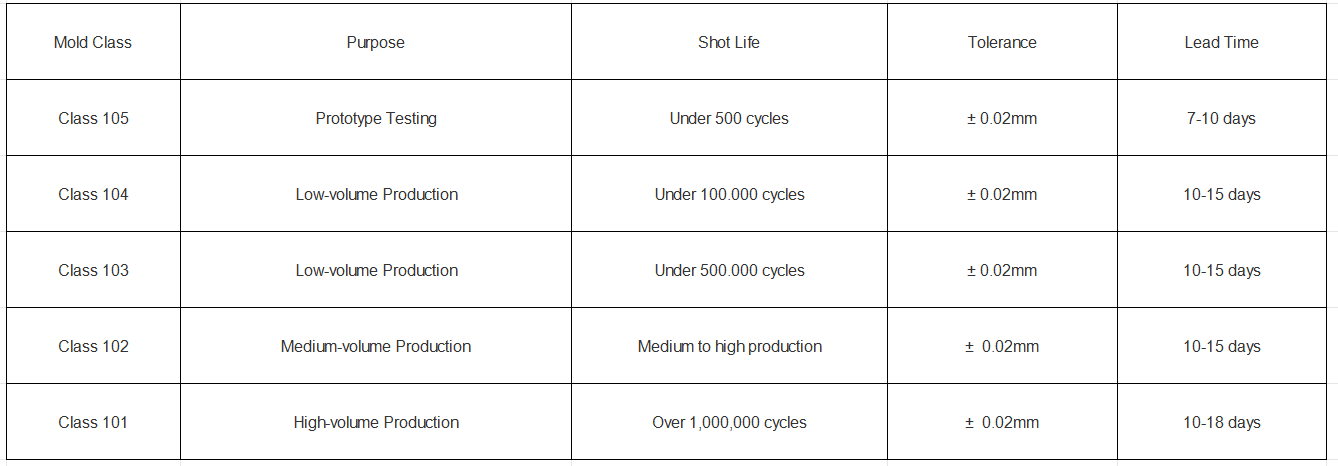

Insert Molding Tolerances and Standards

For your convenience and to solve your problem more efficiently, refer to the following information to improve part manufacturability and reduce lead times. Let’s unlock the potential of your insert molding project.

Surface Finishes by Material

Different materials require different finishing processes. Explore the most suitable surface finishes for aluminum, stainless steel, titanium, brass, copper, engineering plastics, and more to achieve the ideal balance of protection, appearance, and performance.

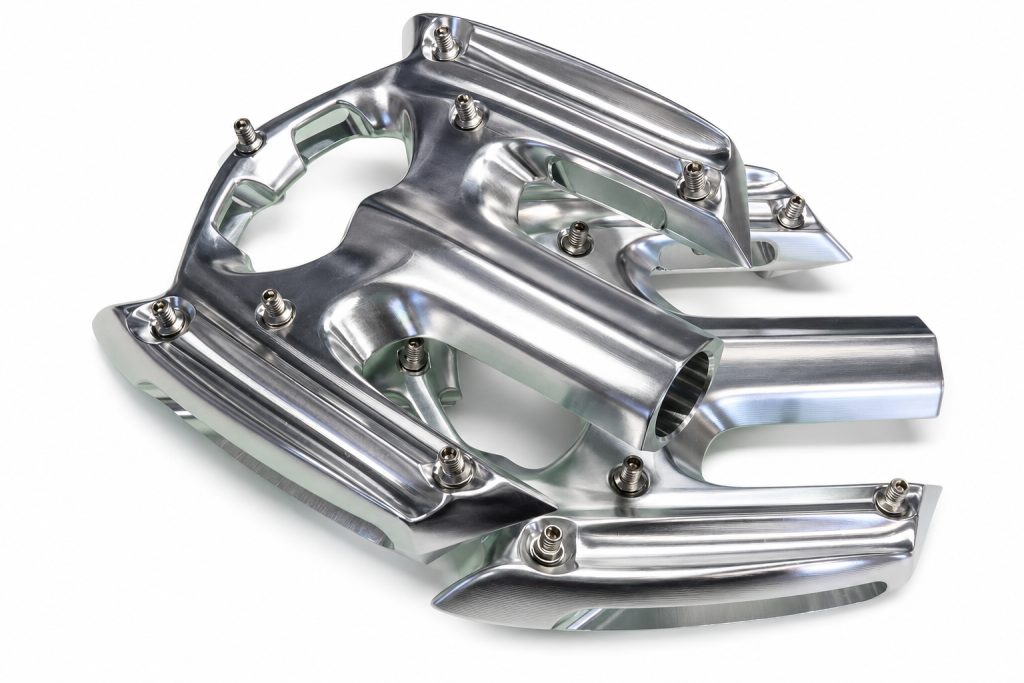

As Machined
As Machined
Description: Standard finish with surface roughness of 3.2 μm (126 μin), removes sharp edges and deburrs parts cleanly. Key Use: Functional parts requiring no post-processing (e.g., brackets, gears). Process Tolerance: Dimensional ±0.1 mm, Ra 3.2±0.5 μm Process Specifications: ISO 2768-m standard, burr height ≤0.05 mm

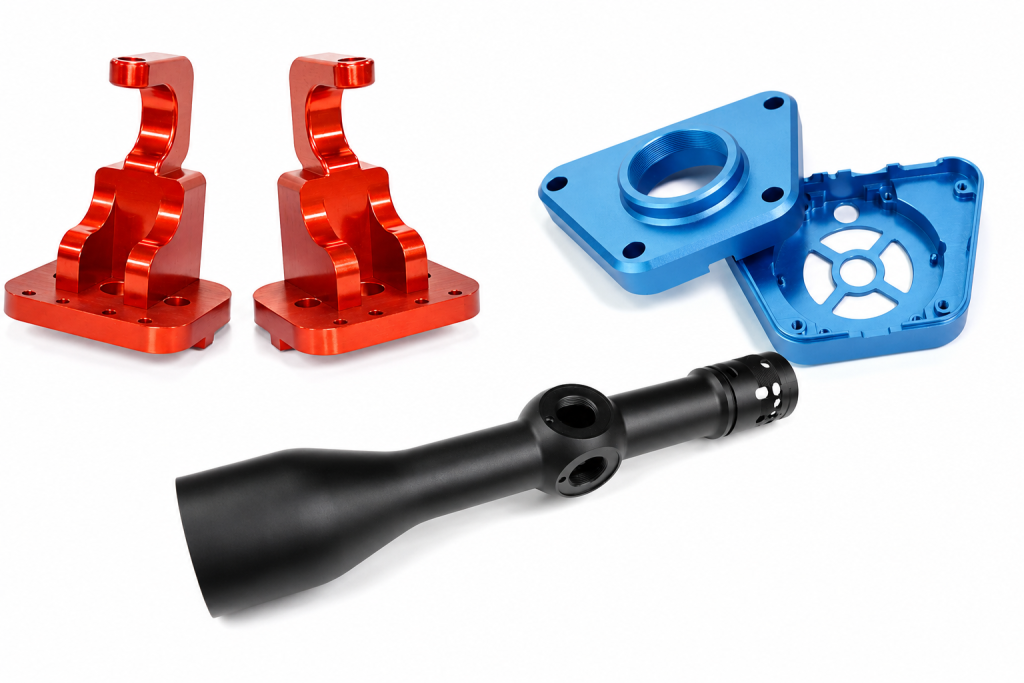

Anodizing
Anodizing
Description: Electrochemical oxide layer for corrosion resistance and aesthetics. Process Compatibility: Post-machining surface treatment Key Use: Aerospace components, consumer electronics (e.g., phone frames). Process Tolerance: Coating thickness 10-25 μm±2 μm, color consistency ΔE≤1.5 Process Specifications: MIL-A-8625 or ISO 7599, sealing pH 5.5-6.5

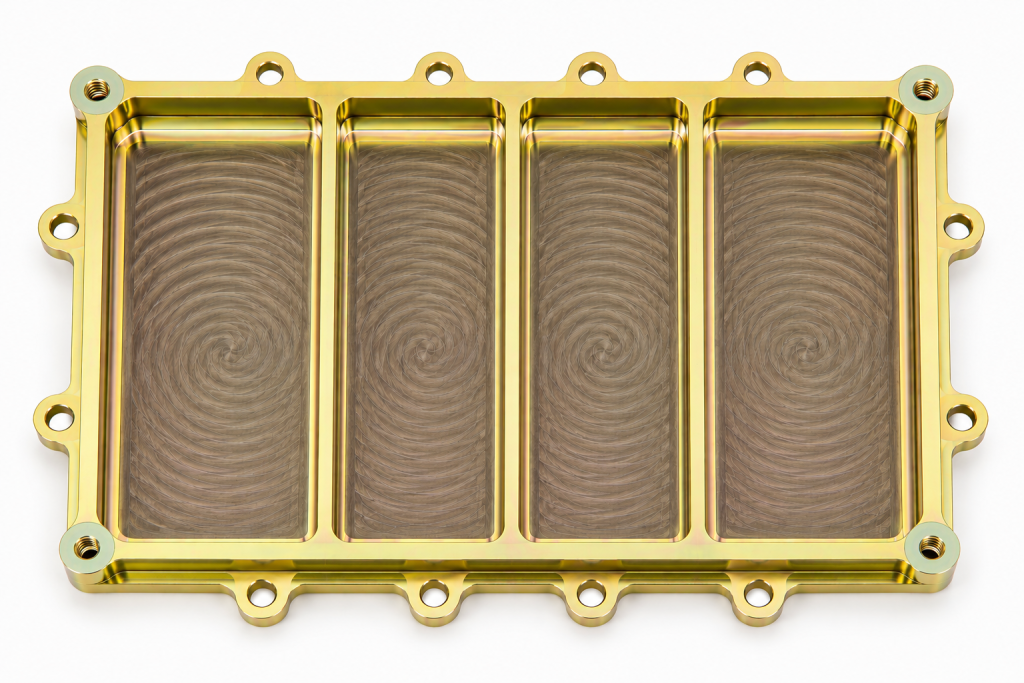

Alodine
Alodine
Description: Chemical film for corrosion protection and paint adhesion. Process Compatibility: Post-cleaning chemical immersion Key Use: Aviation and automotive electrical housings. Process Tolerance: Film thickness 0.5-3 μm, visual uniformity Process Specifications: Immersion time 3-10 min, bath temp. 20-30℃

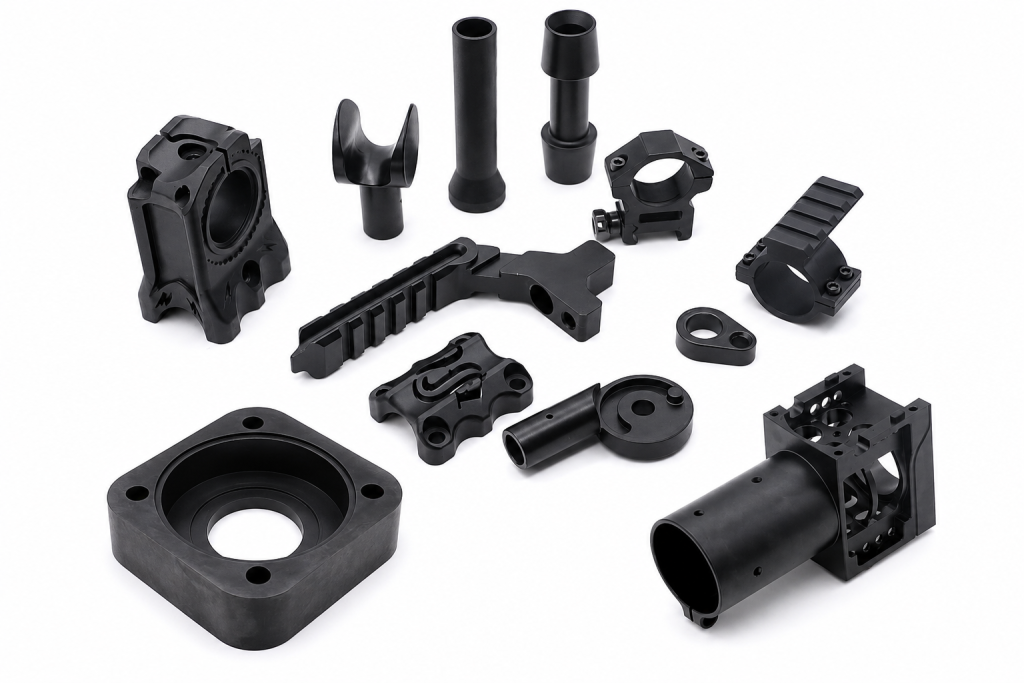

Black Oxide
Black Oxide
Description: Thin magnetite layer for corrosion resistance and reduced glare. Process Compatibility: Post-machining chemical treatment Key Use: Tools, firearms, automotive fasteners. Process Tolerance: Coating thickness 0.5-1.5 μm, salt spray ≥24 hrs Process Specifications: Alkaline bath pH 13-14, process time 5-30 min

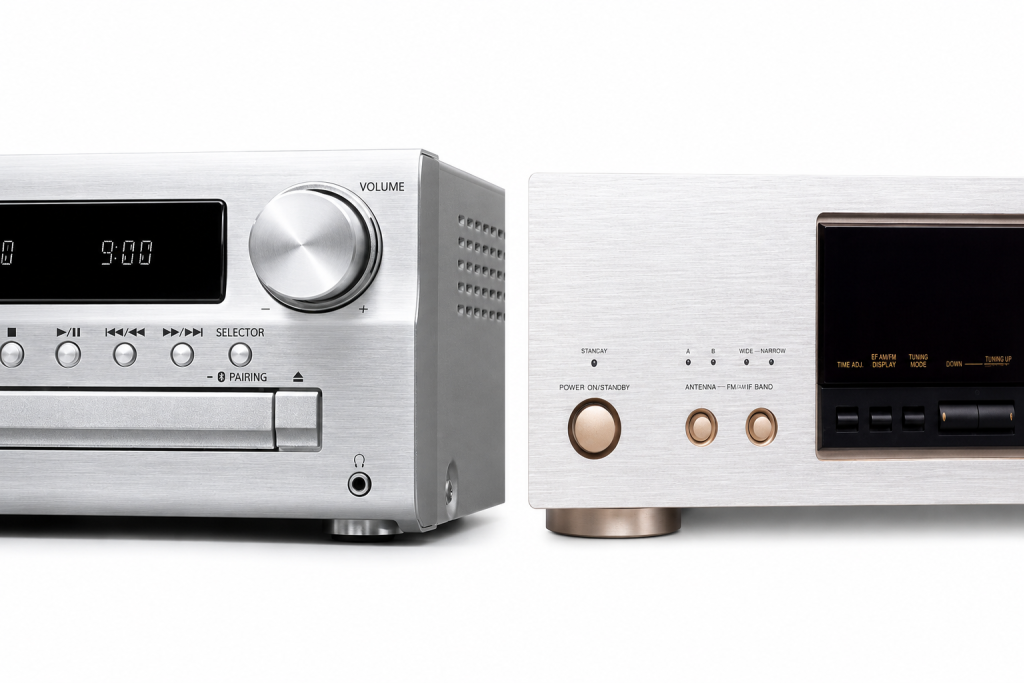

Brushed Finish
Brushed finish
Description: Linear abrasive finish for decorative texture. Process Compatibility: Manual/CNC abrasive belts Key Use: Appliance panels, architectural trims. Process Tolerance: Texture depth 0.05-0.2 mm, angle deviation ≤5° Process Specifications: Abrasive belt grit 80-240, feed speed 10-30 m/min
Etching
Etching
Description: Chemical/mechanical removal for micro-texturing or marking. Process Compatibility: Laser/chemical masking Key Use: Circuit boards, decorative logos. Process Tolerance: Etch depth 0.01-0.5 mm±5%, alignment ±0.1 mm Process Specifications: Etchant concentration 10-30%, laser power 20-100 W

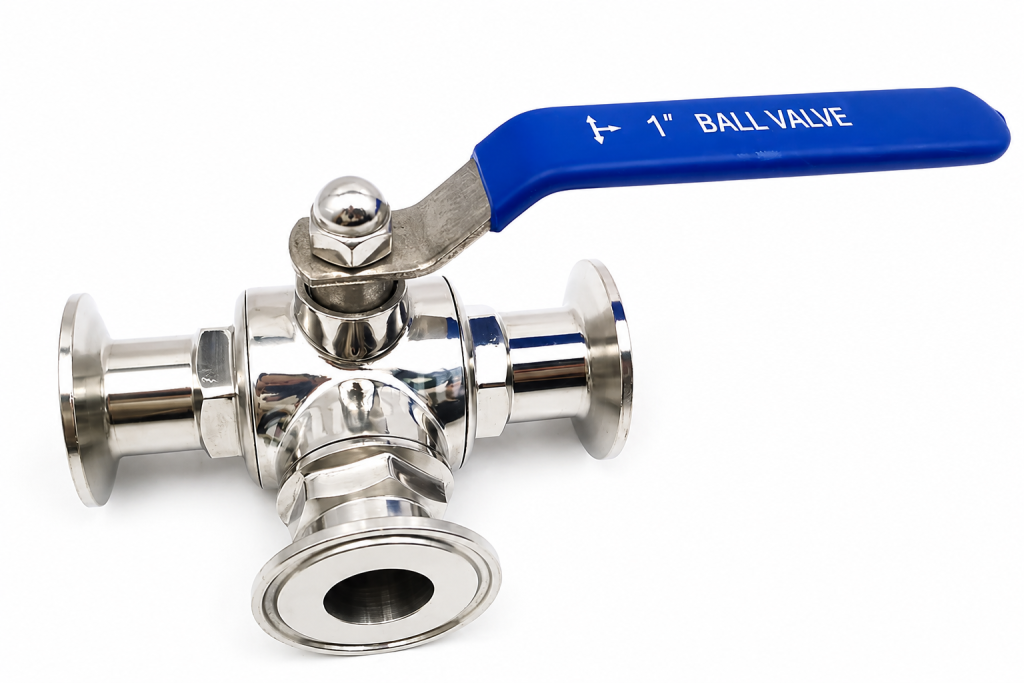

Electroless Plating
Electroless Plating
Description: Uniform metal coating (e.g., nickel) without electricity. Process Compatibility: Chemical bath deposition Key Use: Wear-resistant industrial valves, connectors. Process Tolerance: Coating thickness 5-50 μm±5%, porosity ≤5/cm² Process Specifications: Bath temp. 85-95℃, pH 4.5-5.5

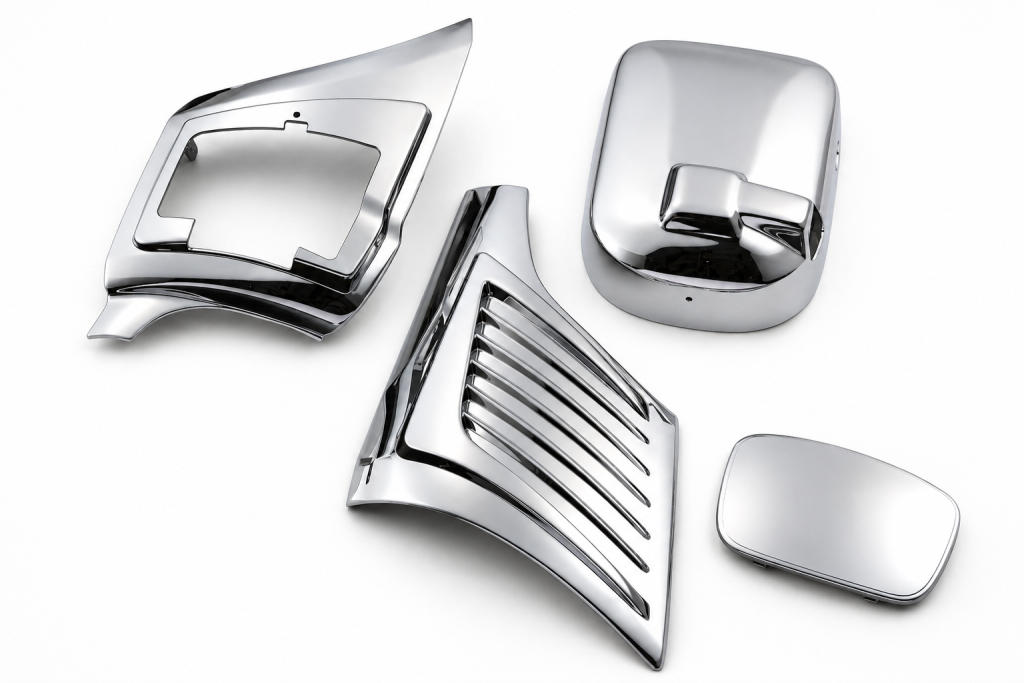

Electroplating
Electroplating
Description: Electrochemical metal coating (e.g., chrome, zinc) for durability. Process Compatibility: Post-machining electrodeposition Key Use: Automotive trim, jewelry. Process Tolerance: Coating thickness 5-25 μm±2 μm, adhesion ≥4B (ASTM B571) Process Specifications: Current density 1-10 A/dm², bath temp. 40-60℃

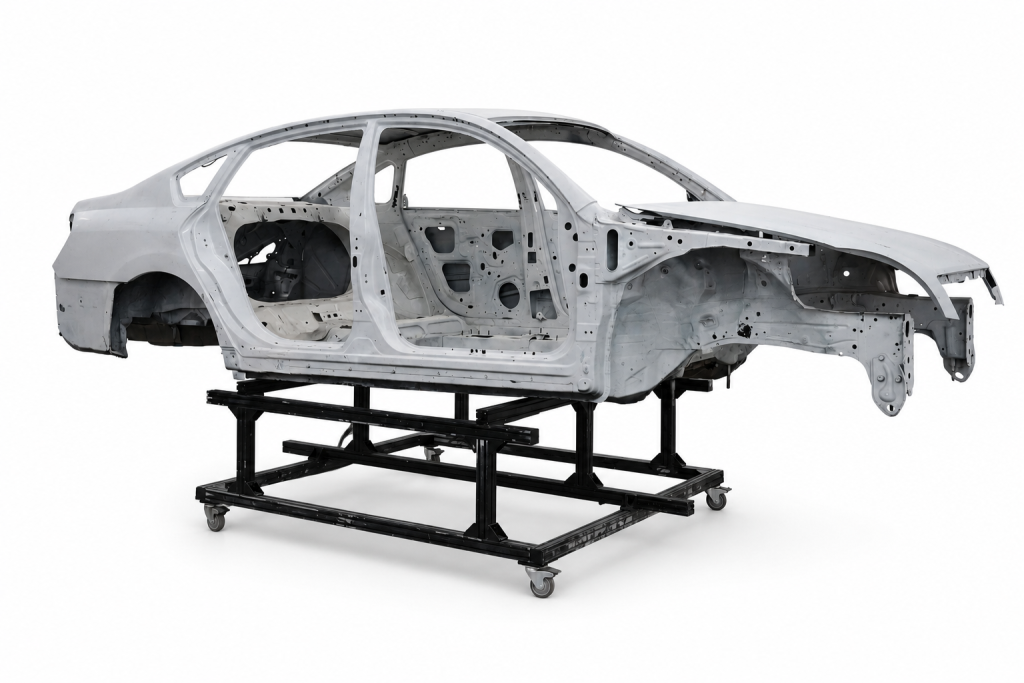

Electrophoretic Coating
Electrophoretic
Description: Polymer coating via electric field for corrosion resistance. Process Compatibility: Post-cleaning immersion Key Use: Automotive frames, HVAC components. Process Tolerance: Coating thickness 15-30 μm±3 μm, edge coverage ≥80% Process Specifications: Voltage 50-300 V, cure 160-200℃×20 min
Electropolishing
Electropolish

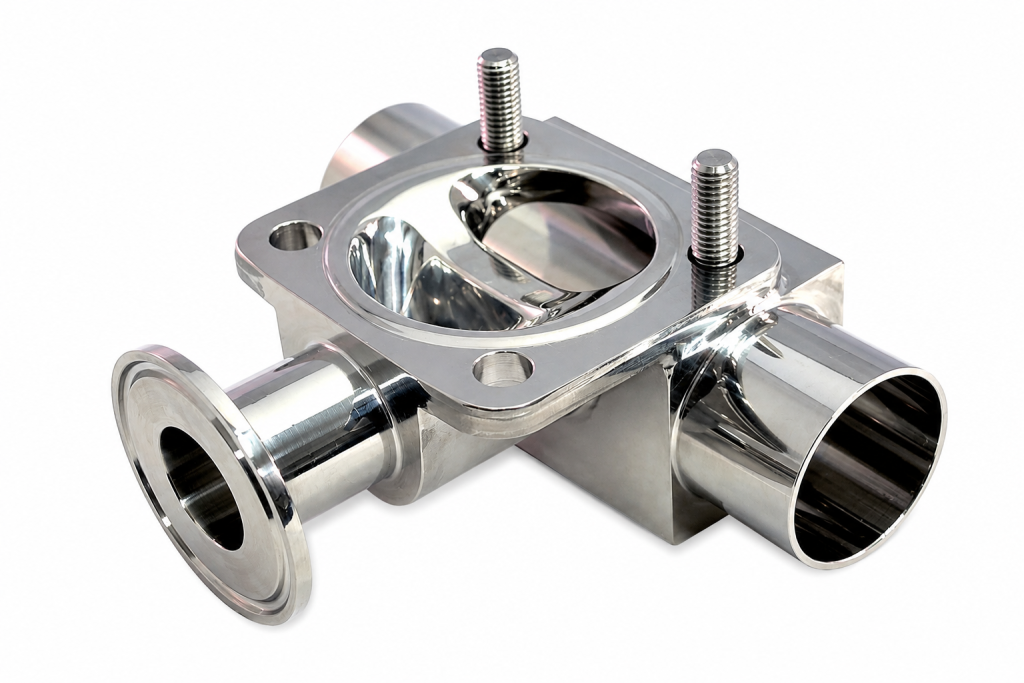

Description: Electrochemical finishing for smoother, cleaner, corrosion-resistant surfaces with a bright finish. Process Compatibility: Post-machining. Key Use: Medical, pharmaceutical, semiconductor, and aerospace parts. Process Tolerance: Material removal 5–25 μm, Ra 0.1–0.4 μm. Process Specifications: ASTM B912 or ISO 15730 with controlled electrolyte and current density.

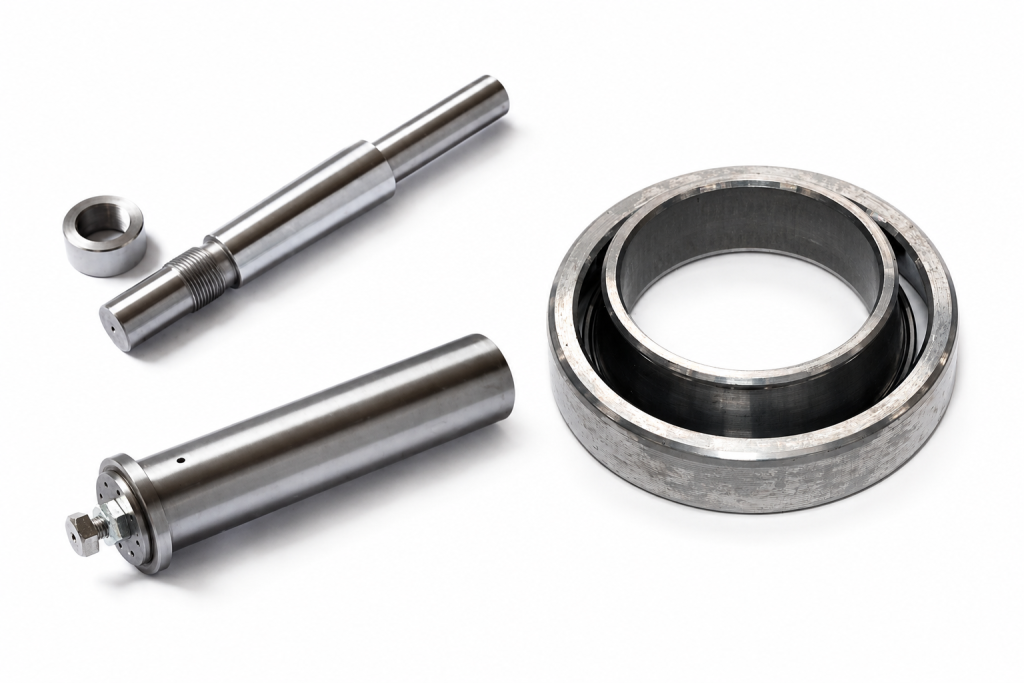

Grinding
Grinding
Description: Precision abrasive finish for tight tolerances. Process Compatibility: Surface/cylindrical grinding Key Use: Bearing races, hydraulic shafts. Process Tolerance: Dimensional ±0.005 mm, Ra 0.4-0.8 μm Process Specifications: Wheel grit 60-120, coolant flow 5-20 L/min

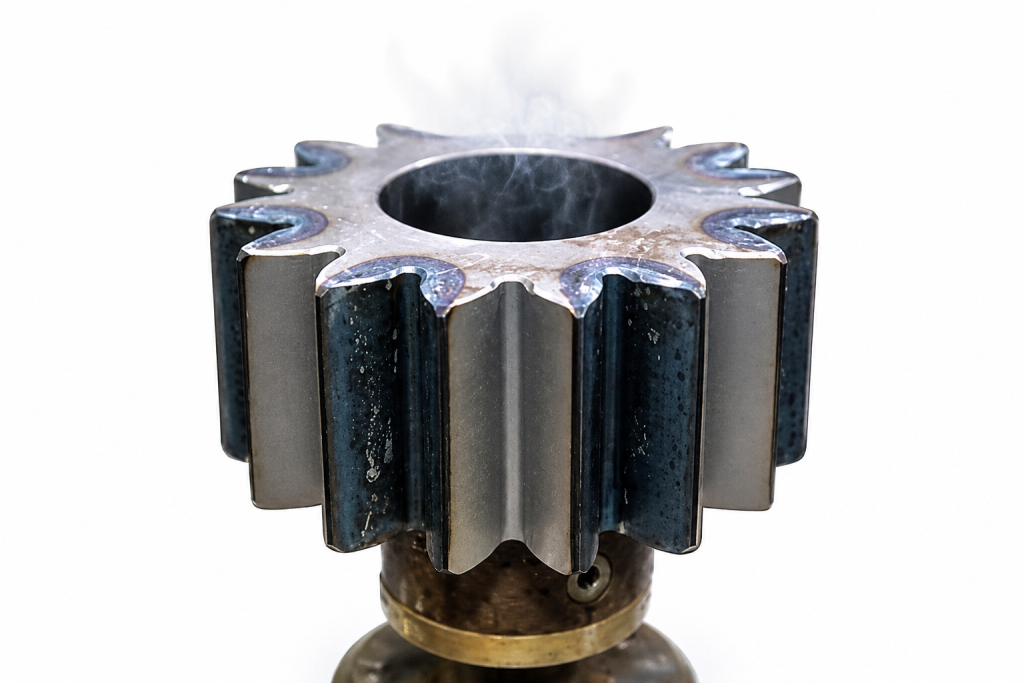

Heat Treatment
Heat Treatment
Description: Thermal process to alter material hardness/toughness. Process Compatibility: Post-machining quenching/tempering Key Use: Gears, cutting tools. Process Tolerance: Hardness HRC 45-60±2, distortion ≤0.1% Process Specifications: Quench temp. 800-1000℃, temper time 1-4 hrs
Knurling
Knurling

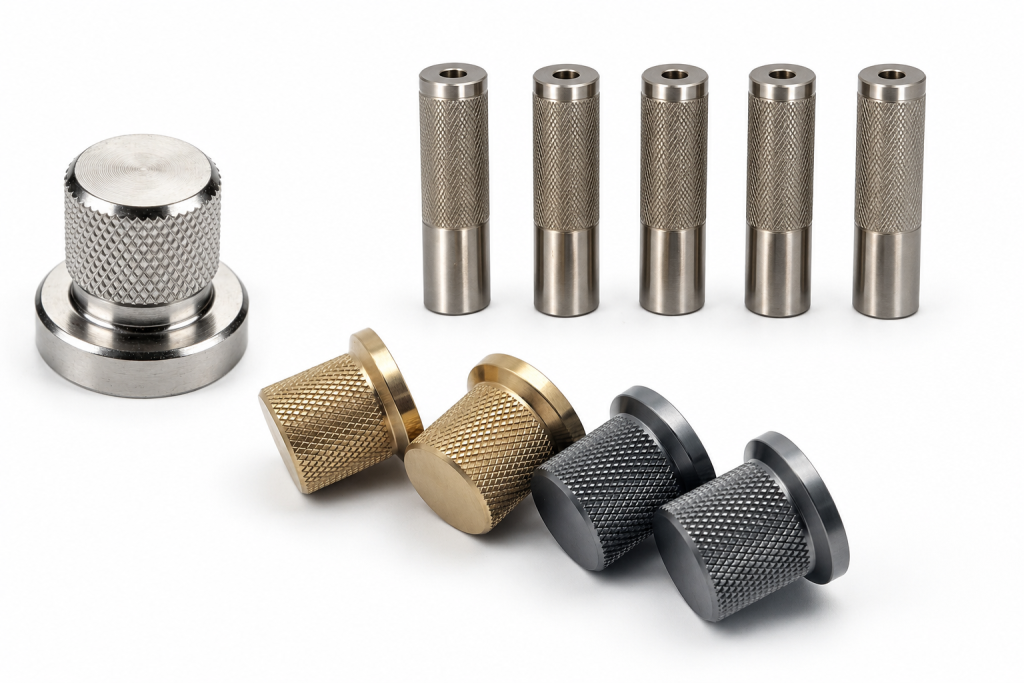

Description: Diamond or linear pattern for improved grip. Process Compatibility: CNC lathe rolling Key Use: Handles, adjustment knobs. Process Tolerance: Pattern depth 0.2-0.5 mm, pitch ±0.05 mm Process Specifications: Roller pressure 200-500 N, feed 10-50 mm/min

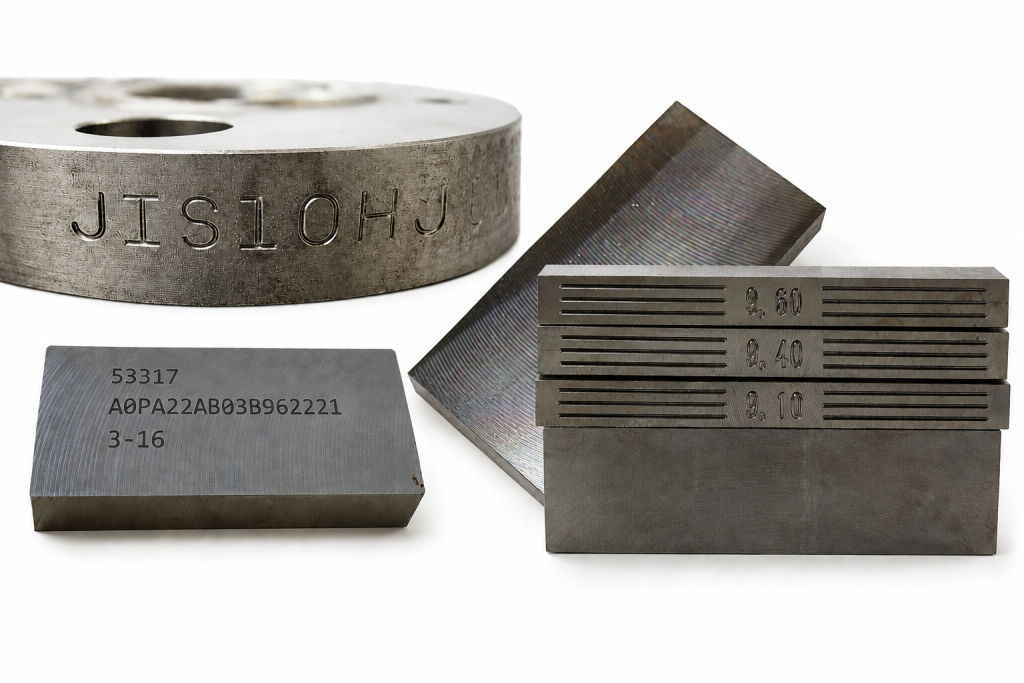

Laser Engraving
Laser Engraving
Description: Permanent marking via laser ablation. Process Compatibility: Post-processing laser systems Materials: Metals, plastics, wood Key Use: Serial numbers, branding on industrial parts.

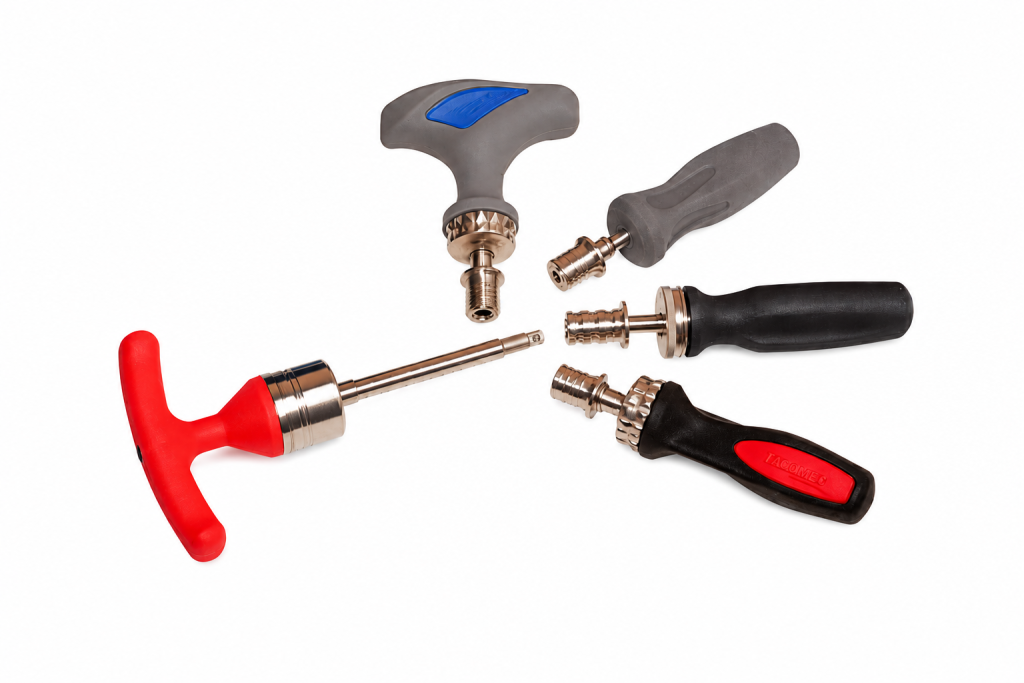

Overmolding
Overmolding
Description: Molding soft material (TPU/silicone) over rigid inserts. Process Compatibility: Injection molding Materials: Plastics, metals (as inserts) Key Use: Ergonomic handles, waterproof seals. Process Tolerance: Overmold thickness 1-5 mm±0.2 mm, bond strength ≥5 MPa Process Specifications: Injection pressure >5 MPa, mold temp. 40-80℃

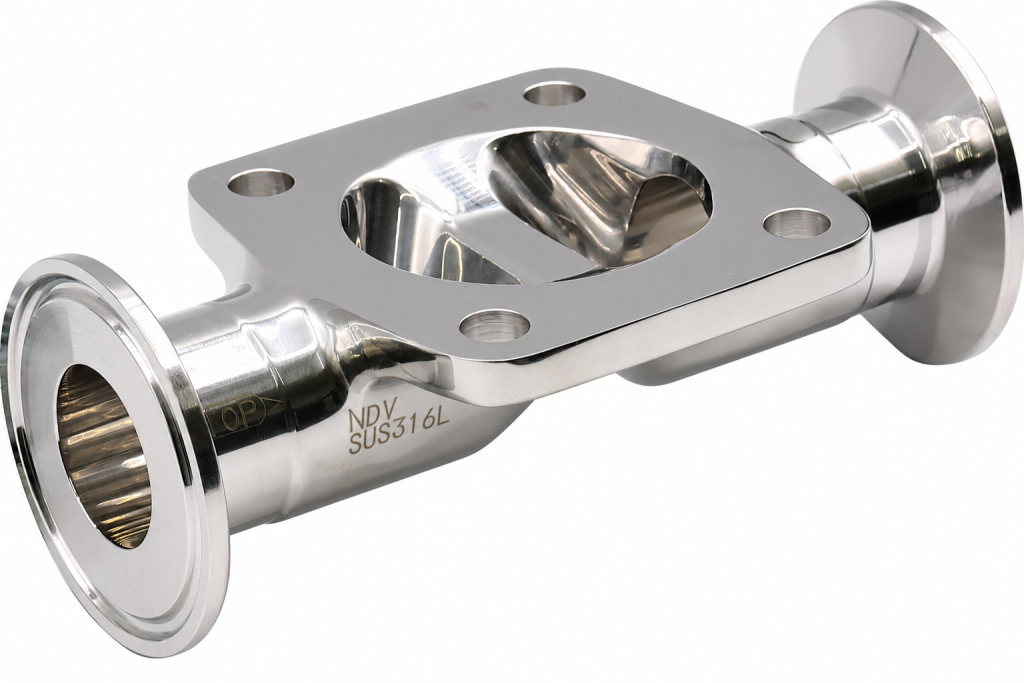

Polishing
Polishing
Description: Mirror-like finish via abrasive compounds. Process Compatibility: Manual/robotic buffing Key Use: Medical instruments, luxury fixtures. Process Tolerance: Ra 0.025-0.1 μm, gloss ≥90 GU Process Specifications: Wheel speed 1000-3000 rpm, compound grit 2000-5000

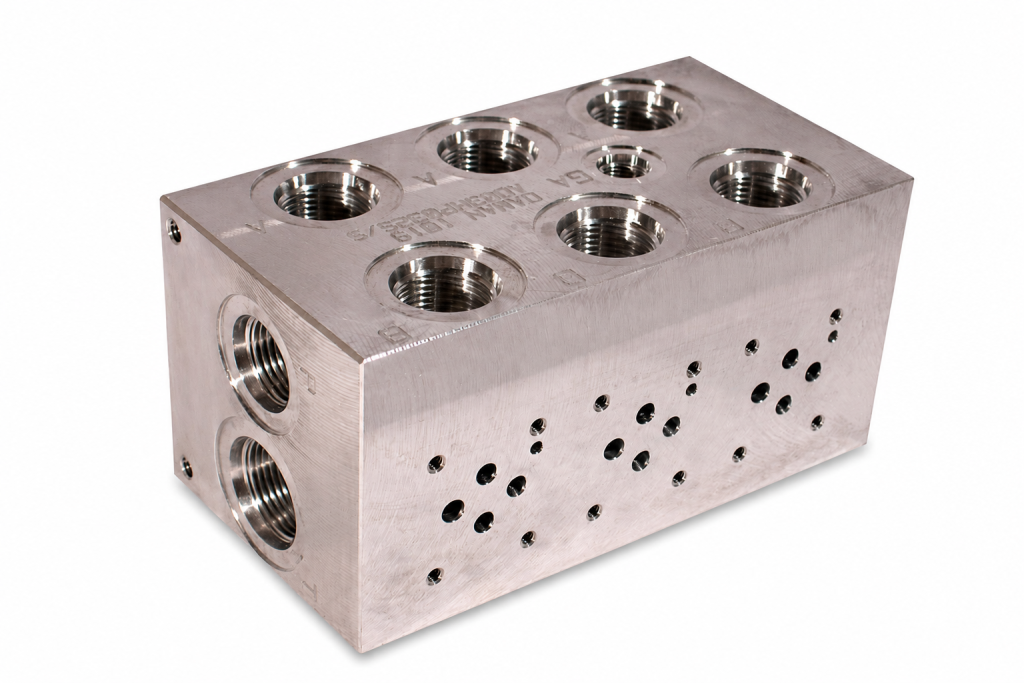

Passivation
Passivation
Description: Acid treatment to remove free iron and enhance corrosion resistance. Process Compatibility: Post-cleaning chemical immersion Key Use: Surgical tools, food processing equipment. Process Tolerance: Film thickness 0.001-0.01 μm, salt spray ≥96 hrs Process Specifications: Nitric acid 20-50%, process time 20-60 min

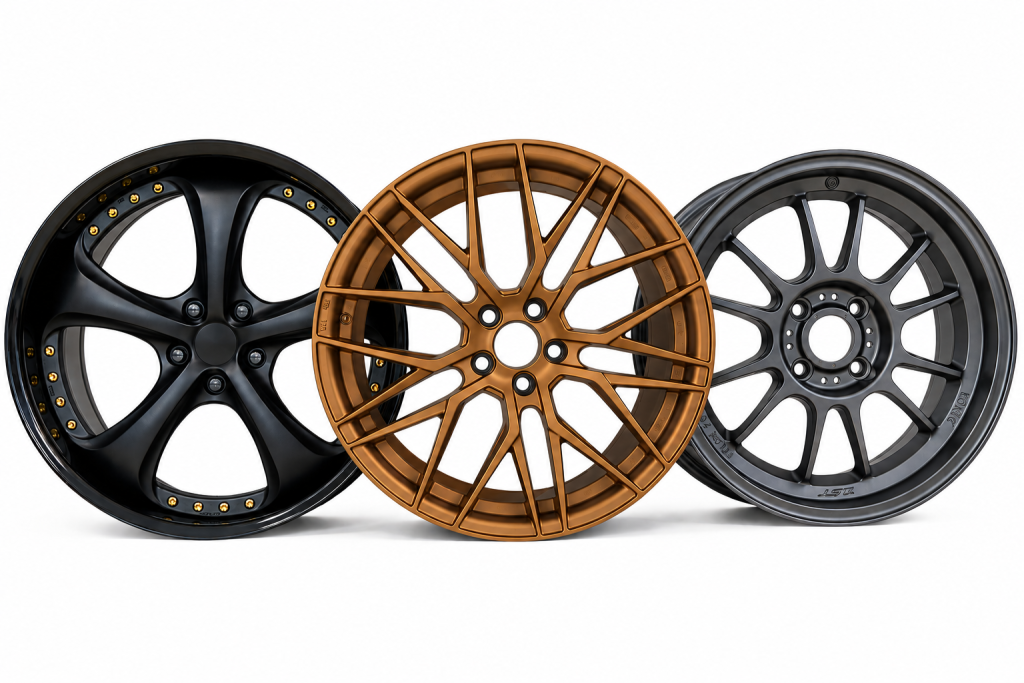

Powder Coating
Powder Coating
Description: Electrostatic polymer powder cured into durable film. Process Compatibility: Post-cleaning spray and bake Key Use: Outdoor furniture, automotive wheels. Process Tolerance: Coating thickness 60-120 μm±10 μm, ΔE≤1.0 Process Specifications: Voltage 30-90 kV, cure 180-200℃×15 min

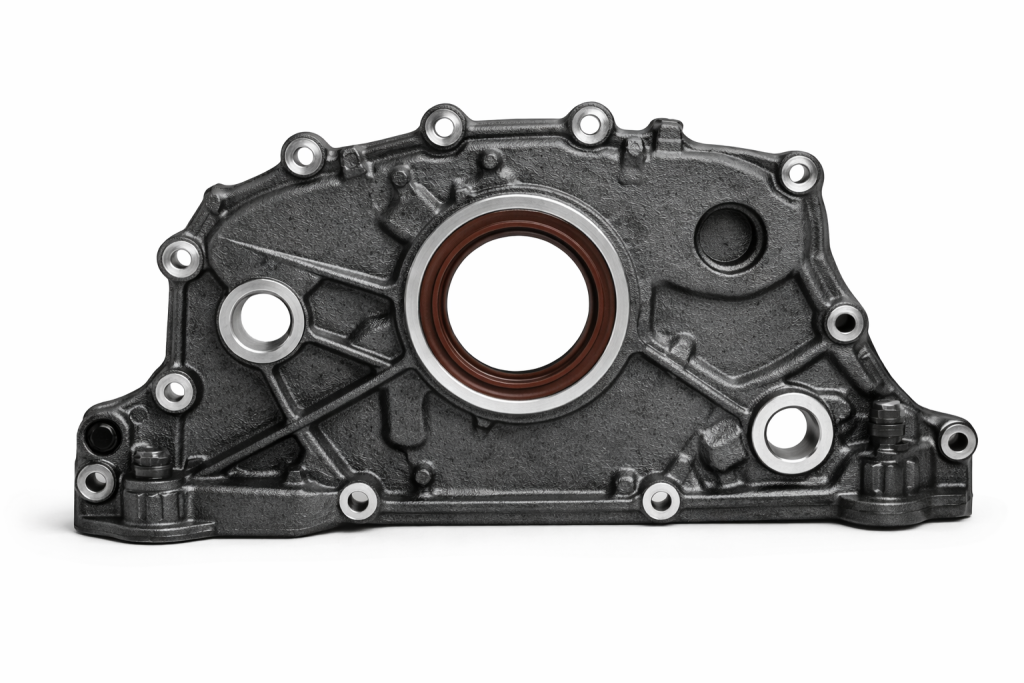

Phosphating
Phosphating
Description: Phosphate layer for lubrication and paint adhesion. Process Compatibility: Chemical immersion Key Use: Engine components, firearm parts. Process Tolerance: Coating weight 2-5 g/m², crystal size ≤5 μm Process Specifications: Bath pH 2-4, process temp. 40-70℃

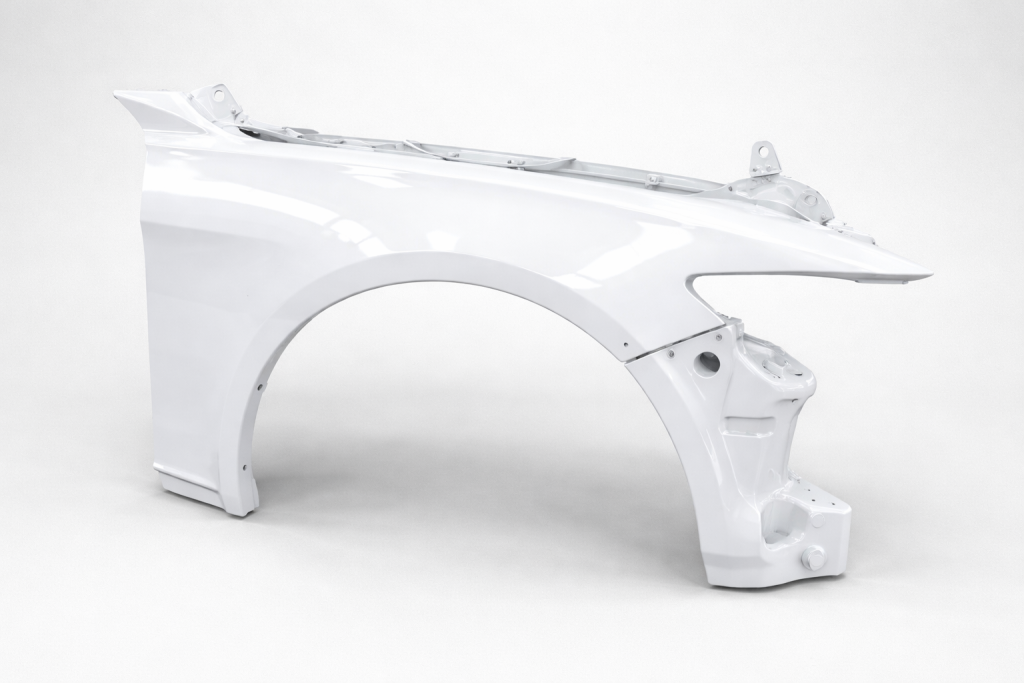

Painting
Painting
Description: Liquid coating for color and protection. Process Compatibility: Spraying/dipping Materials: Metals, plastics Key Use: Consumer electronics, automotive body panels. Process Tolerance: Coating thickness 20-50 μm±5 μm, adhesion ≥3B (ASTM D3359) Process Specifications: Spray pressure 0.3-0.6 MPa, cure 80-120℃×30 min

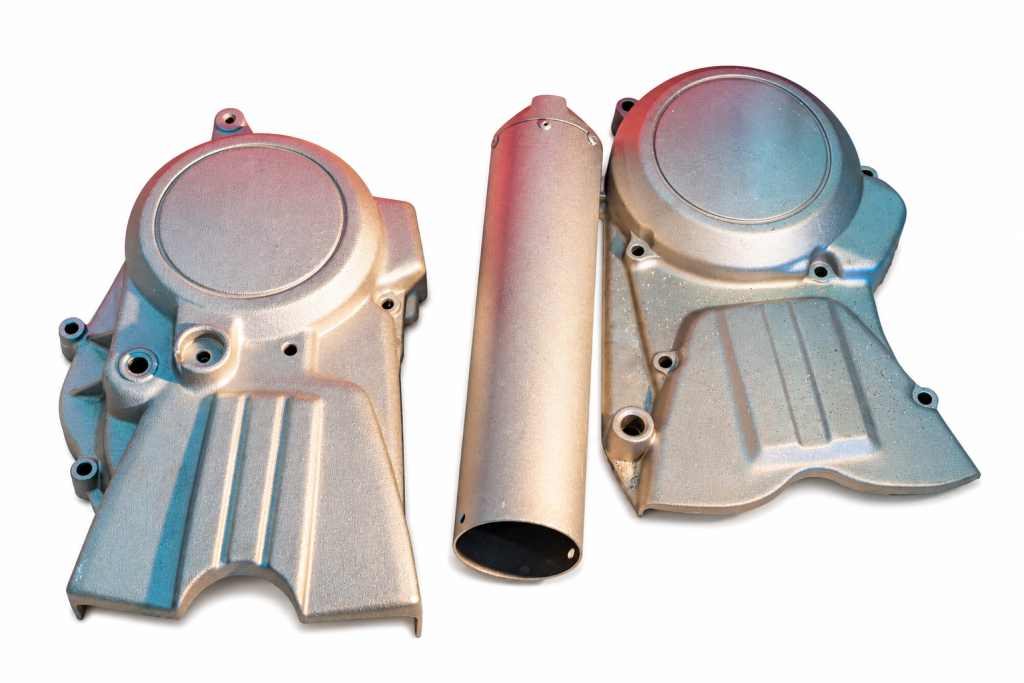

Sandblasting
Sand blasting
Description: Abrasive jet finish for uniform matte texture. Process Compatibility: Post-machining blasting Materials: Metals, glass, stone Key Use: Architectural facades, engine blocks. Process Tolerance: Ra 1.6-6.3 μm, coverage ≥95% Process Specifications: Grit size 80-120, air pressure 0.4-0.7 MPa

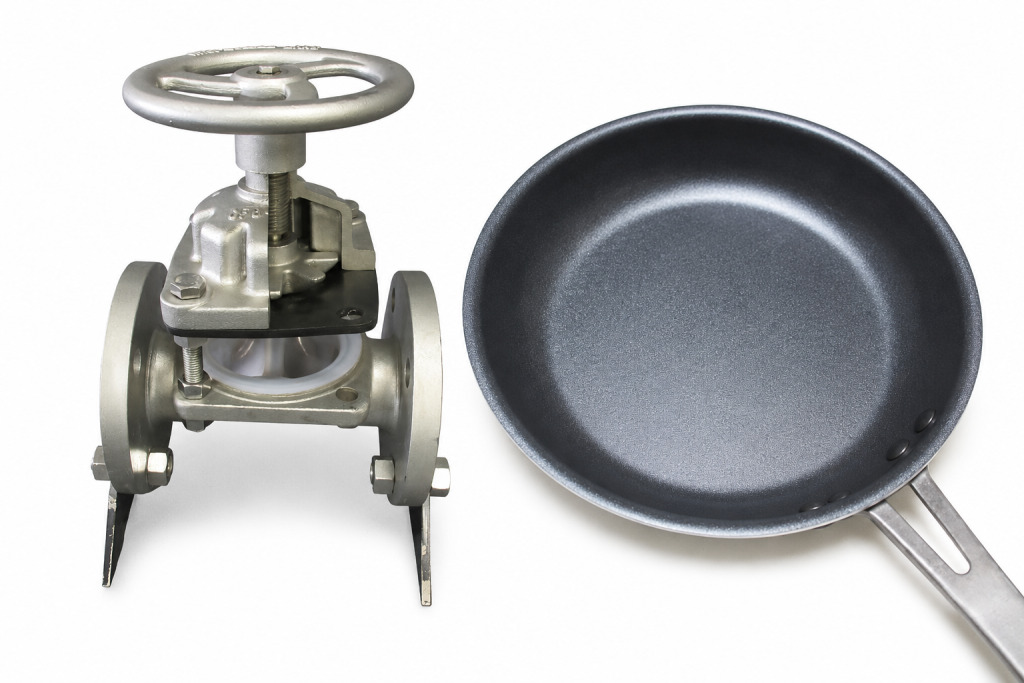

Teflon Coating
Teflon Coating
Description: Non-stick, chemical-resistant polymer layer. Process Compatibility: Spraying/baking Materials: Metals, ceramics Key Use: Cookware, chemical valves. Process Tolerance: Coating thickness 15-50 μm±5%, non-stick cycles ≥1000 Process Specifications: Sintering 360-400℃, cure time 10-30 min

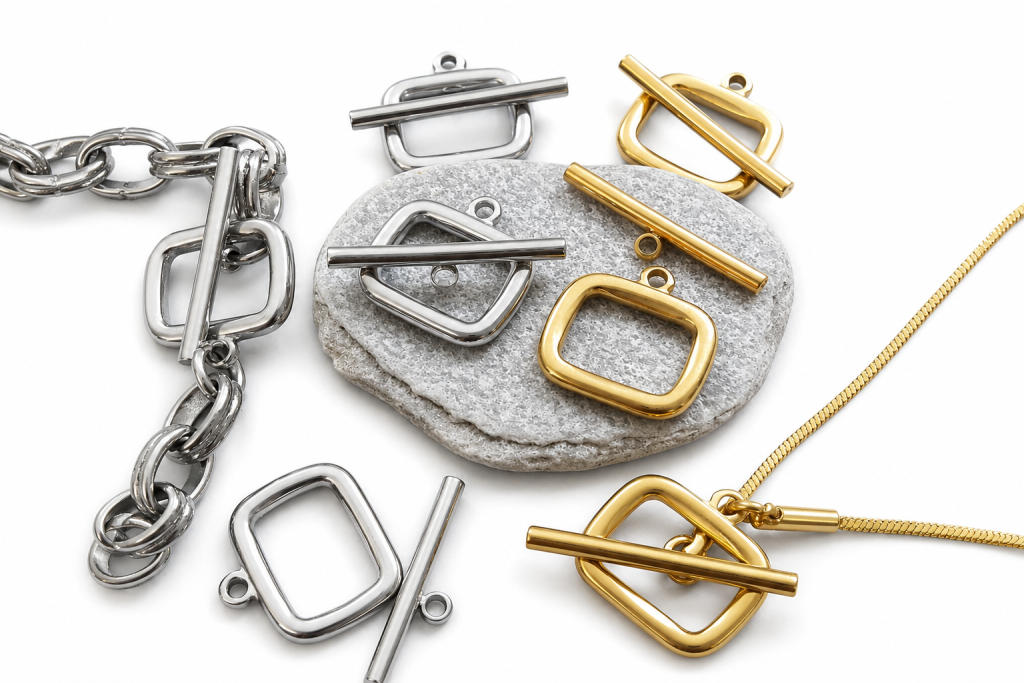

Tumbling
Tumbling
Description: Barrel polishing for edge rounding and deburring. Process Compatibility: Vibratory/rotary barrels Materials: Metals, plastics Key Use: Jewelry, small hardware components. Process Tolerance: Edge radius R0.1-0.5 mm, weight loss ≤1% Process Specifications: Media size 3-10 mm, speed 10-30 rpm, time 1-12 hrs
SPI Finish
SPI Finish

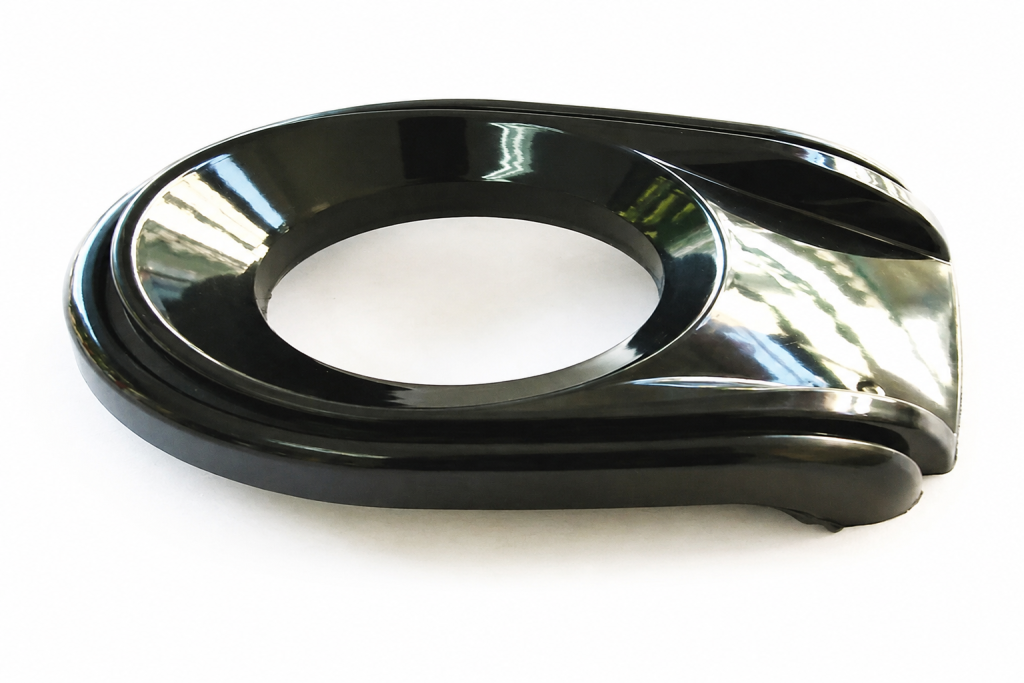

Description: Graded texture (e.g., SPI-A1 for glossy, SPI-C3 for matte). Process Compatibility: EDM, polishing Materials: Tool steel, aluminum molds Key Use: Plastic injection molds for consumer products. Process Tolerance: Ra 0.05-1.6 μm, texture replication ≥90% Process Specifications: SPI-SPE-1 standard, EDM current 5-50 A

What is Insert Molding?How Does Insert Molding Work?‌

Insert Molding is a ‌specialized injection molding process‌ where pre-fabricated inserts (e.g., metal parts, threaded fasteners, or electronic components) are embedded into molten plastic to form a single, unified part‌. This method integrates dissimilar materials seamlessly, enhancing structural integrity and functionality in applications like electrical connectors, automotive sensors, and medical devices‌.

  • Insert Preparation‌:Inserts (e.g., brass threads, metal pins, or ceramic substrates) are manufactured via machining, stamping, or 3D printing‌.
  • Surfaces may be treated (e.g., roughening or coating) to improve adhesion with the plastic‌.
  • Mold Setup‌:Inserts are manually or robotically placed into designated cavities within the injection mold‌. Precision alignment ensures the insert remains fixed during plastic injection‌.
  • Injection Molding‌:Molten thermoplastic (e.g., nylon, ABS, or PEEK) is injected into the mold, encapsulating the insert under controlled temperature and pressure‌.Cooling systems solidify the plastic around the insert, forming a permanent bond‌.
  • Post-Processing‌:Excess material (flash) is trimmed, and parts are inspected for bonding quality and dimensional accuracy‌.

Success Stories of Insert Molding Projects

FAQs

What materials are used in insert molding?‌

Insert molding utilizes engineering-grade thermoplastics (nylon, PEEK, ABS) paired with metal inserts (stainless steel, brass, aluminum). The process

requires materials with compatible thermal expansion coefficients and bonding characteristics to ensure structural integrity under operational stresses.

While both processes create multi-material components, insert molding embeds pre-formed metal/plastic inserts during injection, primarily for

structural enhancement. Overmolding sequentially molds thermoplastic elastomers (TPE) over substrates to improve grip or aesthetics. Insert

molding accommodates various processes, whereas overmolding is exclusively injection-based.

Insert molding design requires strategic planning of part specifications, material selection, and process parameters. Key considerations include:

defining mechanical/thermal requirements, selecting compatible metal/plastic combinations, optimizing insert geometry for mold integration,

and validating through prototyping. The process demands precise control of injection parameters to ensure proper material bonding and

 dimensional accuracy.
